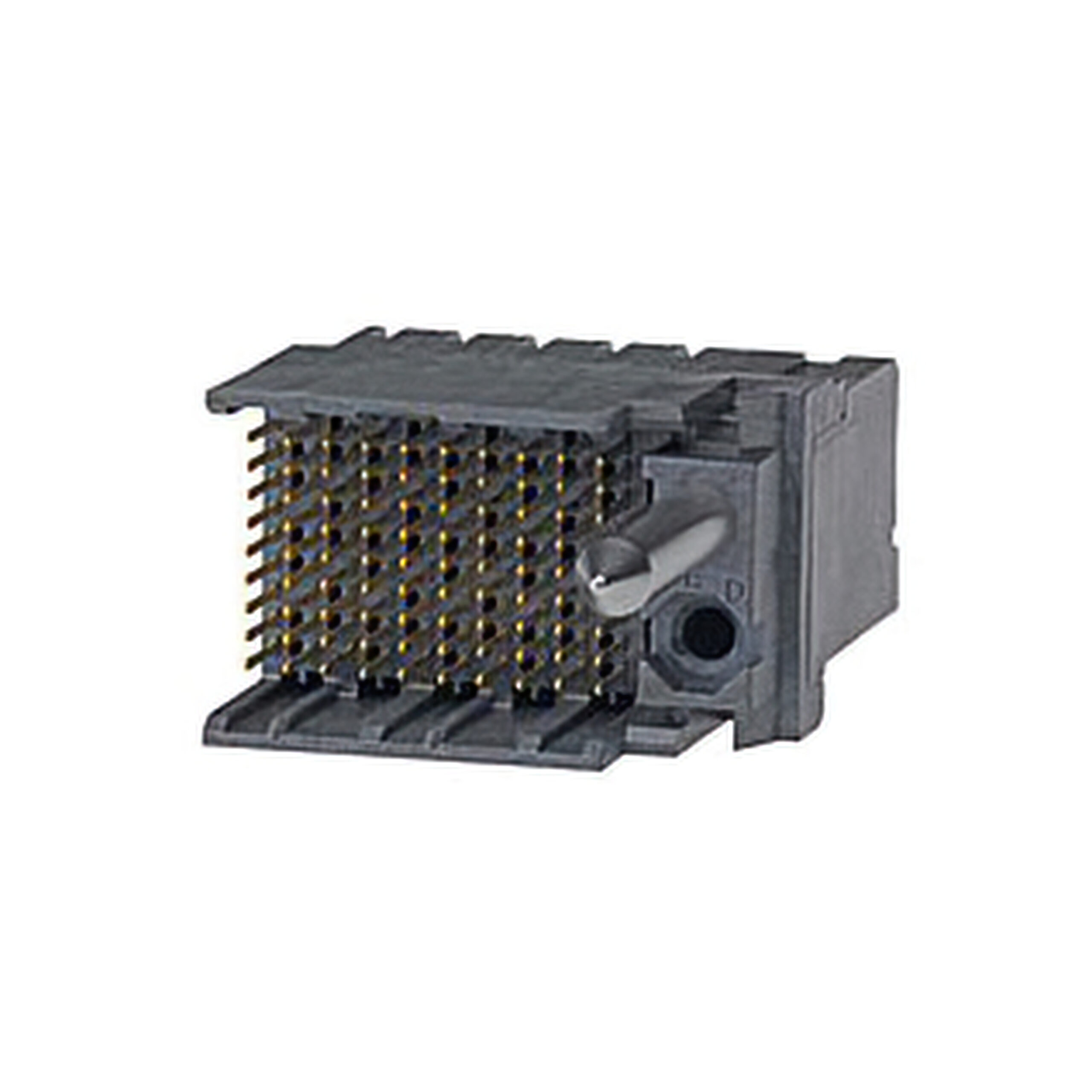

764105107 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HDR IMPACT 90POS EDGE MNT. Review the specifications below when checking this part for your BOM.
Specialized Backplane Connectors specifications for 764105107
- Description：CONN HDR IMPACT 90POS EDGE MNT
- Series：Impact 76410
- Mfr：Molex
- Package：Tray
- Connector Usage：-
- Connector Type：Header, Male Pins
- Connector Style：Impact, Guide Right
- Number of Positions：90
- Number of Positions Loaded：All
- Pitch：0.053" (1.35mm)
- Number of Rows：9
- Number of Columns：10
- Mounting Type：Board Edge, Through Hole, Right Angle
- Termination：Press-Fit
- Contact Layout, Typical：30 Differential Pairs
- Features：Board Guide
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Color：Black
