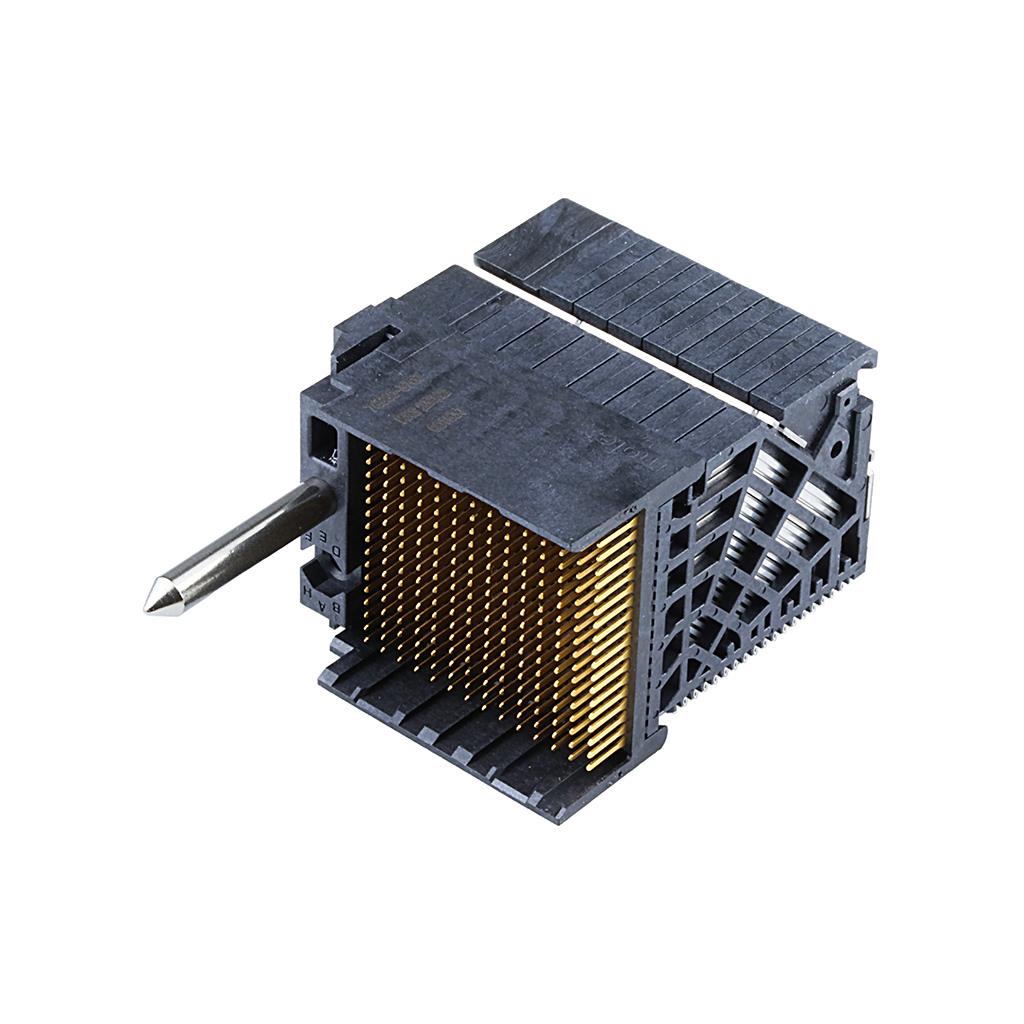

765603707 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HDR IMPACT 224POS EDGE MNT. Review the specifications below when checking this part for your BOM.
Specialized Backplane Connectors specifications for 765603707
- Description：CONN HDR IMPACT 224POS EDGE MNT
- Series：Impact 76560
- Mfr：Molex
- Package：Tray
- Connector Usage：-
- Connector Type：Header, Male Pins
- Connector Style：Impact, Guide Left
- Number of Positions：224
- Number of Positions Loaded：All
- Pitch：0.053" (1.35mm)
- Number of Rows：18
- Number of Columns：14
- Mounting Type：Board Edge, Through Hole, Right Angle
- Termination：Press-Fit
- Contact Layout, Typical：84 Differential Pairs
- Features：-
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Color：Black
Specialized Backplane Connectors datasheet and documents for 765603707
