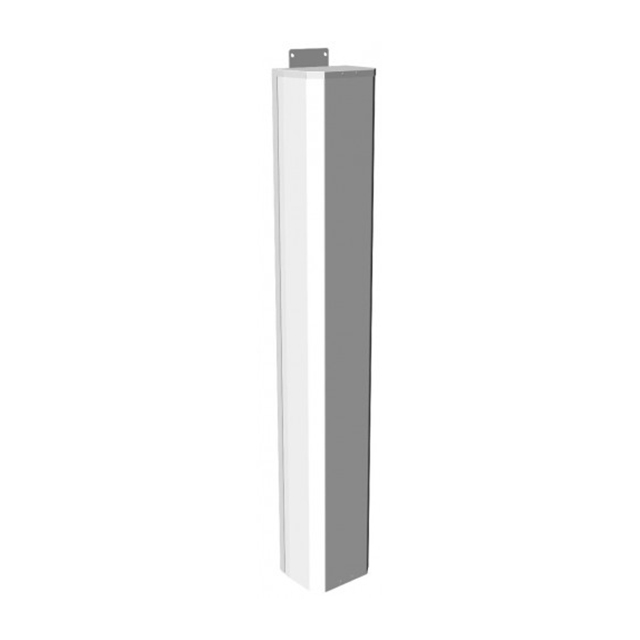

766.12.11.00

$1,155.04

Description：X-POL PANEL ANTENNA 120DEG. 11
Series：-
Mfr：Amphenol Procom
Package：Box

SKU:1c5218abe5e9 Category: RF Antennas Brand: Amphenol Procom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：X-POL PANEL ANTENNA 120DEG. 11
Series：-
Mfr：Amphenol Procom
Package：Box
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：425MHz
Frequency Range：380MHz ~ 470MHz
Antenna Type：Panel
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：11dBi
Features：-
Termination：7/16 Female
Ingress Protection：IP56
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：72.441" (184.00cm)
Applications：-
Power - Max：800 W

Download product information

766.12.11.00

Overview

The Amphenol Procom 766.12.11.00 is an X-POL panel antenna designed for the 380-470 MHz frequency range. It features a 120-degree horizontal beamwidth and provides 11 dBi gain. The unit utilizes a 7/16 DIN Female connector for interface connectivity. The main housing is constructed from marine-grade aluminum alloy (5083) to ensure corrosion resistance.

Feature Summary

Cross-polarized design with 120-degree beamwidth
Marine-grade aluminum construction for corrosion resistance
Integrated 7/16 DIN Female connector

Applications

Marine communication systems
Public safety radio networks
Industrial two-way radio installations

Procurement Notes

Verify the specific datasheet version for the 766.12.11.00 model to confirm current manufacturing specifications. Ensure that the required 7/16 DIN Female mating components are compatible with the installation environment. Confirm lead times directly with authorized distributors as availability may vary by region.

Selection Notes

Select this component when cross-polarization is required within the 380-470 MHz band. The 120-degree beamwidth suits wide-area coverage needs. Marine-grade housing makes it suitable for harsh environments. Verify that the 11 dBi gain meets the system link budget requirements.

Part Context

This part belongs to the Amphenol Procom XPOL series of panel antennas. The series offers both vertical and cross-polarized configurations. These antennas are engineered for reliable performance in professional radio communication applications requiring durable construction and consistent signal coverage.

Replacement Considerations

The 766.12.11.00-N variant is available, which shares the same technical specifications but may differ in packaging or minor accessory inclusion. Verify connector compatibility if substituting with other models in the 766 series.
