77313-101-36LF

Headers, Male Pins Overview

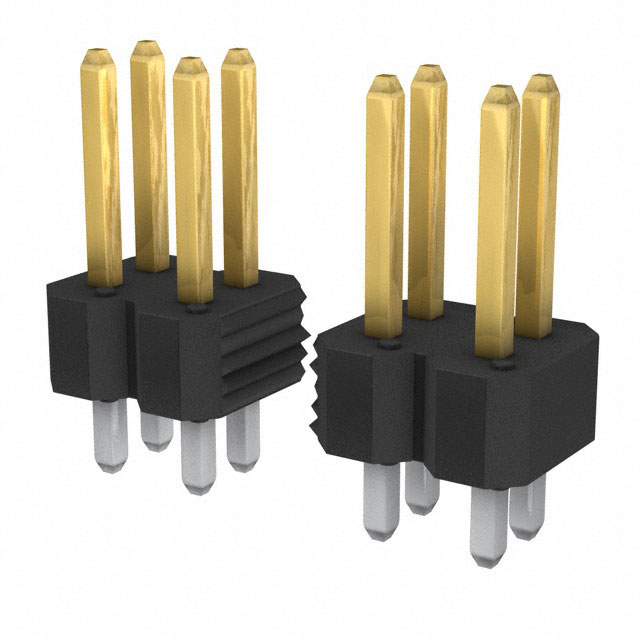

The Amphenol ICC (FCI) 77313-101-36LF is a BergStik® unshrouded header connector featuring 36 positions arranged in two rows. It utilizes a 2.54 mm (0.100 inch) pitch and is designed for vertical through-hole termination. The contacts are male pins made of phosphor bronze, with gold plating on the mating section and tin plating on the termination posts. The insulator is black thermoplastic rated UL94 V-0. This component supports a current rating of 3A per contact and operates within a temperature range of -65°C to 130°C.

Headers, Male Pins Feature Summary

• Unshrouded design with square pin shape for board-to-board or cable applications
• Push-pull locking mechanism secures connection without shrouds
• Gold-plated mating contacts ensure reliable signal transmission

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic equipment headers

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm plating thickness and material variations. Ensure the ordering part number matches the exact position count and row configuration required for the target PCB layout. Cross-reference the manufacturer's latest documentation to confirm active status and compliance details before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when an unshrouded, high-density header is required for vertical mounting. The 2.54 mm pitch accommodates standard PCB spacing. Consider the push-pull locking feature for secure attachment without additional housing. Verify that the 3A current rating and thermal limits meet the application's electrical and environmental requirements.

Headers, Male Pins Part Context

This part belongs to the BergStik® series of unshrouded headers from Amphenol ICC (FCI). It shares family characteristics such as the 2.54 mm pitch and phosphor bronze contact material with other models in the 77313 base series. Variations within the series typically differ by position count and specific plating options.

Headers, Male Pins Replacement Considerations

The 94644-110LF is listed as an alternative for similar configurations within the same product line. Verify mechanical dimensions and electrical ratings against the original specification sheet before substitution.
