77313-102-30LF

Headers, Male Pins Overview

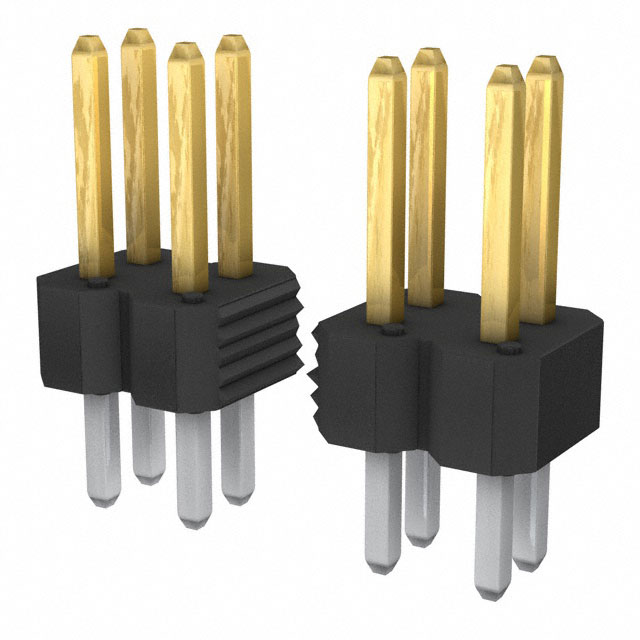

The Amphenol ICC (FCI) 77313-102-30LF is a BergStik® series unshrouded header connector designed for board-to-board and cable applications. It features a 2.54 mm pitch with 30 positions arranged in a double row configuration. The component utilizes through-hole termination with solder pins and includes a push-pull fastening mechanism. Constructed from phosphor bronze contacts with gold plating, it operates within a temperature range of -65°C to 130°C and supports a rated current of 3A per contact.

Headers, Male Pins Feature Summary

• Double-row unshrouded design for high-density interconnects
• Push-pull fastening system for secure mating
• Gold-plated phosphor bronze contacts for reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact pin count and plating specifications. Ensure compatibility with mating receptacles regarding height and pitch. Confirm RoHS compliance status via the latest datasheet before integration into regulated assemblies.

Headers, Male Pins Selection Notes

Select this component when a vertical, double-row header with a push-pull locking feature is required. It is suitable for applications needing robust mechanical retention alongside standard 2.54 mm spacing. Consider the thermal rating and current capacity relative to the circuit load requirements.

Headers, Male Pins Part Context

This part belongs to the BergStik® family of connectors, known for their versatility in various industrial and commercial electronics. The 77313 series offers multiple position options and termination styles, providing engineers with standardized solutions for reliable signal and power transmission across different board configurations.

Headers, Male Pins Replacement Considerations

94644-110LF is listed as an alternative for similar BergStik headers, though availability may vary. Verify mechanical dimensions and electrical ratings against the original specification sheet before substitution.
