77319-803-10LF

Headers, Male Pins Overview

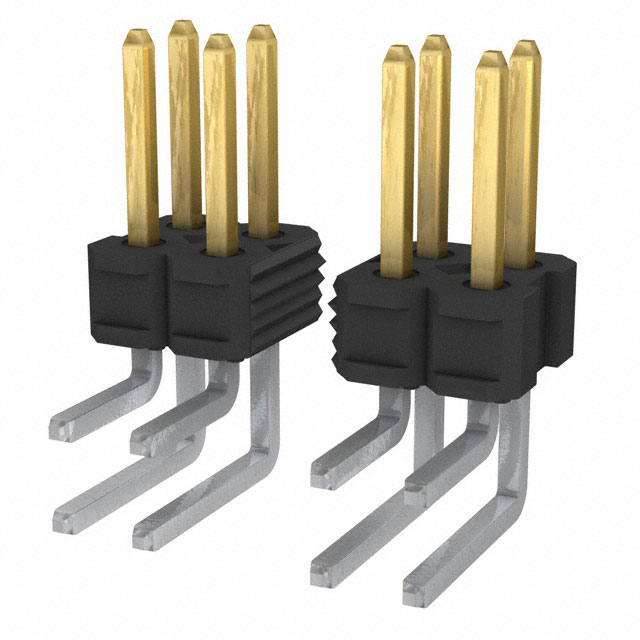

The Amphenol ICC (FCI) 77319-803-10LF is a board connector featuring 10 contacts arranged in two rows. It utilizes a male contact configuration with a right-angle orientation and a 0.1-inch pitch. The component employs solder terminals for termination and includes locking features to secure the connection. The insulator is constructed from black thermoplastic material, and the unit is compliant with RoHS standards.

Headers, Male Pins Feature Summary

• Right-angle mounting configuration for space-constrained PCB layouts
• Locking mechanism ensures secure mating retention
• Male contact gender with solder termination style

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system boards
• Telecommunications hardware assemblies

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against the datasheet to ensure compatibility with the target PCB footprint. Confirm that the right-angle orientation matches the assembly requirements. Check for RoHS compliance documentation if environmental regulations apply to the final product deployment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle board connector with locking capabilities is required. Ensure the 0.1-inch pitch aligns with the mating header or socket specifications. Consider the male contact gender relative to the opposing connector interface to prevent mating errors during assembly.

Headers, Male Pins Part Context

This part belongs to the 77319 series of board connectors manufactured by Amphenol ICC (FCI). The series typically offers various contact counts and configurations within the same mechanical envelope. It represents a standard solution for reliable electrical connections in commercial and industrial electronics applications.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 77319 series variants with matching pin counts and pitch. Verify mechanical dimensions and locking feature compatibility before cross-referencing with alternative manufacturers' equivalent right-angle board connectors.
