78098-104LF

Headers, Male Pins Overview

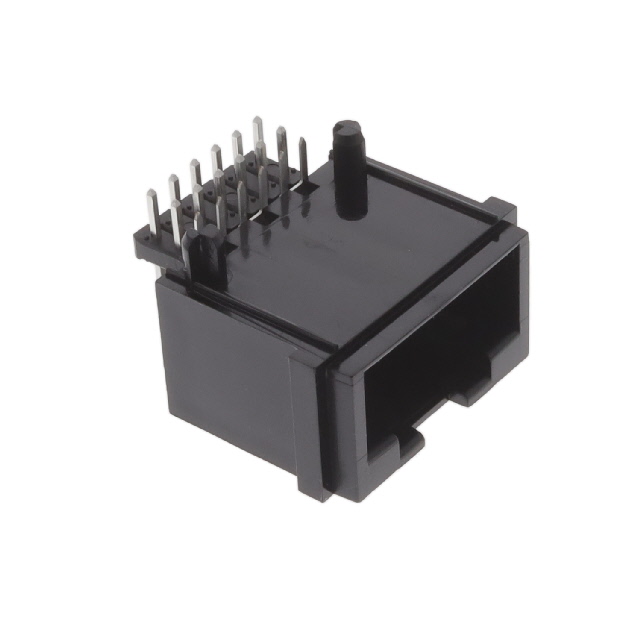

The Amphenol ICC (FCI) 78098-104LF is a right-angle header connector from the LATCH-N-LOK™ series. It features 12 positions in a dual row configuration with a 0.100" (2.54mm) pitch. Designed for through-hole mounting, it utilizes gold or GXT™ contact plating with a thickness of 30.0µin (0.76µm). The housing is black thermoplastic rated UL94 V-0, providing board guide and ground pin features. Rated for 250VDC and 2.5A, it includes a four-wall shroud.

Headers, Male Pins Feature Summary

• LATCH-N-LOK™ locking mechanism ensures secure retention
• Gold or GXT™ contact plating provides reliable conductivity
• Four-wall shrouded design offers comprehensive insulation
• Board guide and ground pin integration supports assembly

Headers, Male Pins Applications

• Industrial control systems
• Factory automation equipment
• Instrumentation modules
• IoT device interconnects

Headers, Male Pins Procurement Notes

Verify that the replacement part number includes the LF suffix to ensure compliance with RoHS standards, as the original 78098-104 was non-compliant. Confirm the availability of the specific 12-position variant, as this series offers multiple pin counts. Ensure the procurement source is an authorized distributor to guarantee component authenticity and traceability.

Headers, Male Pins Selection Notes

Select this component when a robust, right-angle header with a positive locking feature is required. The 2.54mm pitch suits general-purpose PCB layouts. Verify that the 2.5A current rating meets circuit requirements. Consider the through-hole termination method for mechanical stability. Ensure the board space accommodates the 0.535" insulation height.

Headers, Male Pins Part Context

This connector belongs to the LATCH-N-LOK™ family, designed for high-reliability applications requiring secure mating. It serves as the lead-free successor to the discontinued 78098-104. The series is engineered for industrial environments, offering durability and consistent performance across various electronic assemblies.

Headers, Male Pins Replacement Considerations

The direct substitute is 78098-104LF. This part maintains identical mechanical and electrical specifications while ensuring RoHS compliance. No functional changes are associated with the LF suffix.
