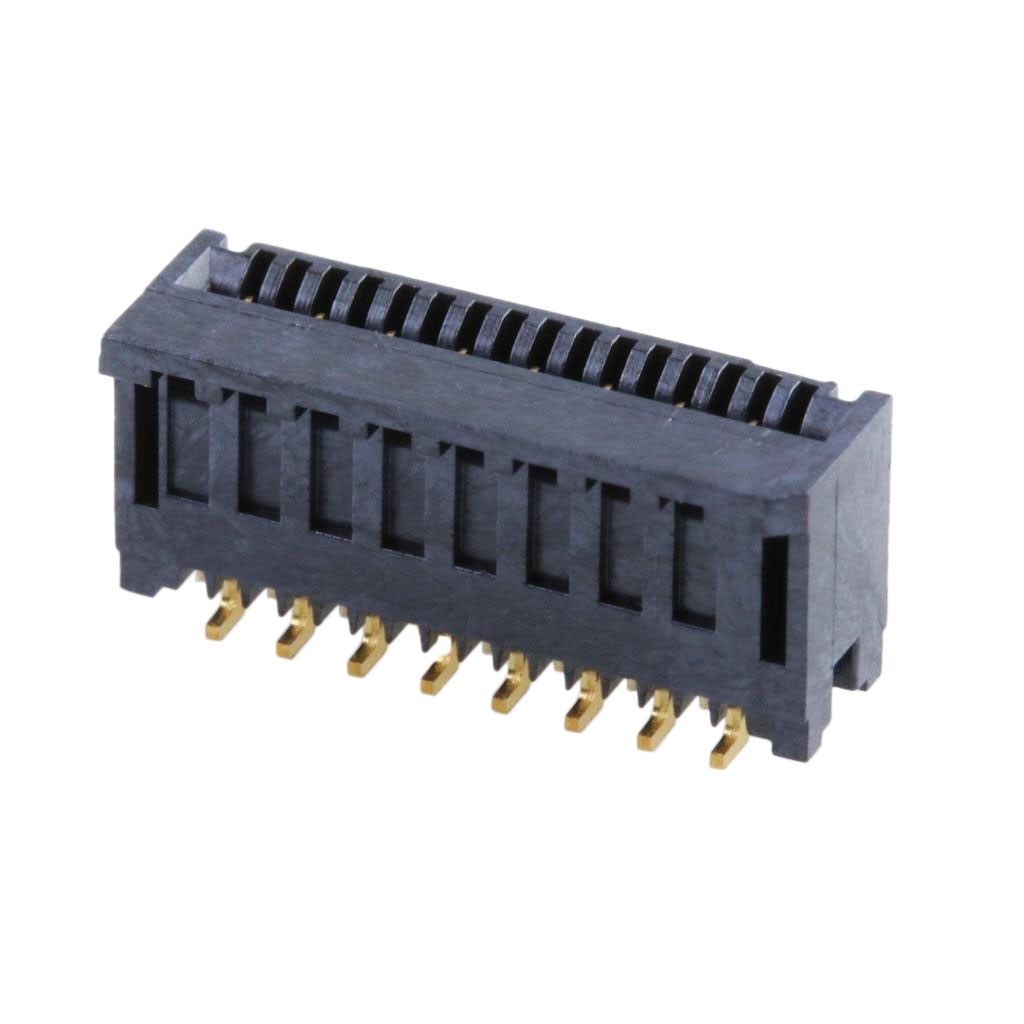

FFC, FPC (Flat Flexible) Connector Assemblies 781191620 product image

781191620

$0.81

Description：CONN FFC VERT 16POS 0.5MM SMD
Series：Easy-On 78119
Mfr：Molex
Package：Tape & Reel (TR),Spool

SKU:e22c15fe8130 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

781191620 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC VERT 16POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 781191620

Description：CONN FFC VERT 16POS 0.5MM SMD
Series：Easy-On 78119
Mfr：Molex
Package：Tape & Reel (TR),Spool
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：16
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.161" (4.10mm)
Locking Feature：-
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material：-
Features：-
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 781191620
