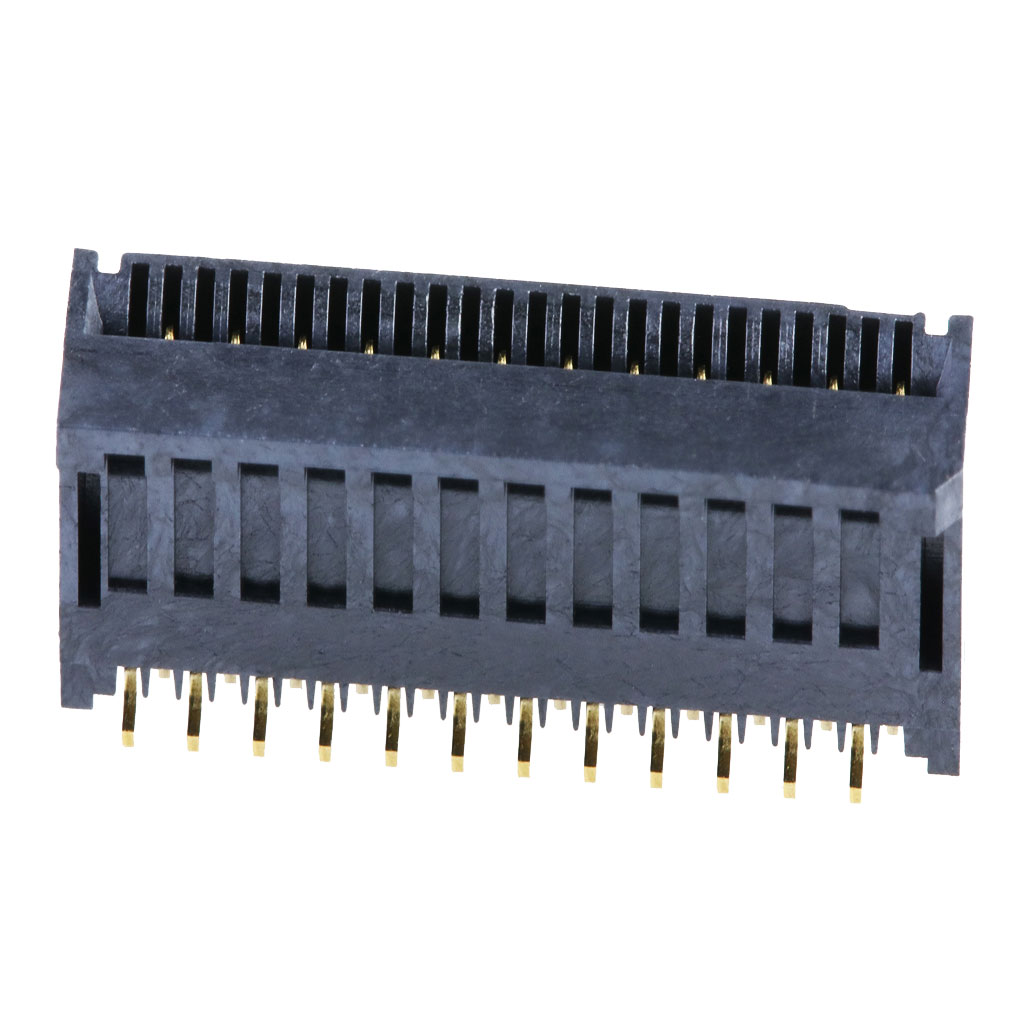

FFC, FPC (Flat Flexible) Connector Assemblies 781272420 product image

781272420

$0.80

Description：CONN FFC VERT 24POS 0.5MM SMD
Series：Easy-On 78127
Mfr：Molex
Package：Tape & Reel (TR)

SKU:8e938fad4b1a Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

781272420 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC VERT 24POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 781272420

Description：CONN FFC VERT 24POS 0.5MM SMD
Series：Easy-On 78127
Mfr：Molex
Package：Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：24
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.161" (4.10mm)
Locking Feature：-
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material：-
Features：-
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0
