Description：FERRITE BEAD 56 OHM 1612 1LN
Series：WE-MPSA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:22816cfffc58 Category: Ferrite Beads and Chips Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 56 OHM 1612 1LN
Series：WE-MPSA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：1
Impedance @ Frequency：56 Ohms @ 100 MHz
Current Rating (Max)：10A
DC Resistance (DCR) (Max)：4mOhm
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Package / Case：1612 (4030 Metric)
Mounting Type：Surface Mount
Height (Max)：0.098" (2.48mm)
Size / Dimension：0.160" L x 0.120" W (4.06mm x 3.05mm)
Features：-

Download product information

78279223560

Overview

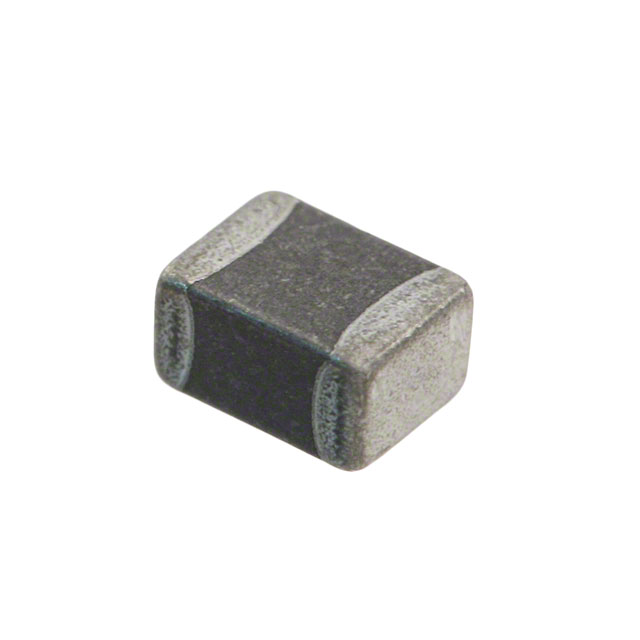

The Würth Elektronik part number 78279223560 is a multilayer power ferrite bead from the WE-MPSA series, designed for EMI suppression in automotive and industrial applications. It features a surface-mount package with dimensions of 4.06 mm length and 3.05 mm width. The component provides an impedance of 56 ohms at 100 MHz and supports a maximum current rating of 10 A. Its DC resistance is specified at 4 mΩ, with an impedance tolerance of ±25%. It complies with the AEC-Q200 qualification standard.

Feature Summary

Multilayer construction for high-current EMI filtering
Automotive-grade reliability via AEC-Q200 qualification
Low DC resistance to minimize power loss
Compact surface-mount footprint

Applications

Automotive electronic systems
Industrial power supply lines
General EMI suppression in high-current circuits

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the AEC-Q200 qualification meets your project's automotive reliability requirements. Ensure the 10 A current rating and 56 Ω impedance align with your circuit design specifications.

Selection Notes

Select this component when high current handling (10 A) and low DC resistance are critical alongside EMI suppression. The 56 Ω impedance at 100 MHz targets specific noise frequencies. Consider the 1612 package size for board space constraints. Verify thermal performance under continuous load conditions.

Part Context

This component belongs to the WE-MPSA series, which focuses on multilayer power ferrite beads. These components are engineered for robust EMI filtering in demanding environments. The series emphasizes high saturation current capabilities and stable impedance characteristics across operating temperatures.
