78279225101

$0.94

Description：FERRITE BEAD 100 OHM 3312 1LN
Series：WE-MPSA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7256c7227031 Category: Ferrite Beads and Chips Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 100 OHM 3312 1LN
Series：WE-MPSA
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：1
Impedance @ Frequency：100 Ohms @ 100 MHz
Current Rating (Max)：10A
DC Resistance (DCR) (Max)：4mOhm
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Package / Case：3312 (8531 Metric)
Mounting Type：Surface Mount
Height (Max)：0.098" (2.48mm)
Size / Dimension：0.335" L x 0.120" W (8.50mm x 3.05mm)
Features：-

Download product information

78279225101

Overview

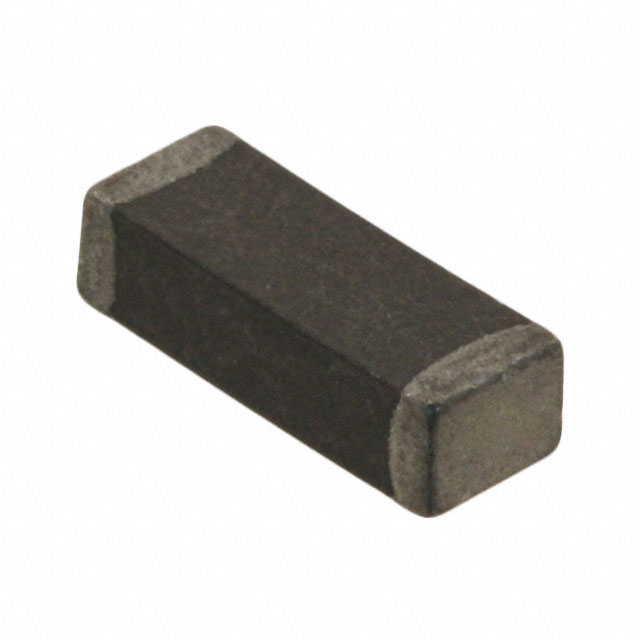

The Würth Elektronik 78279225101 is a multilayer chip ferrite bead from the WE-MPSA series, designed for surface-mount assembly. It features a 3312 (8530 metric) package with dimensions of 8.5 mm length, 3.0 mm width, and 2.28 mm height. The component provides an impedance of 100 Ω at 100 MHz and exhibits a maximum impedance of 1200 MHz. It supports a DC current rating of 10 A and has a low DC resistance of 4 mΩ. Qualified under AEC-Q200 standards, it operates within a temperature range of -55°C to +125°C.

Feature Summary

High current handling capability suitable for power line filtering applications
Automotive qualification compliant with AEC-Q200 reliability standards
Multilayer construction enabling compact surface-mount integration

Applications

EMI suppression in automotive electronic systems
Power line filtering for high-current circuits
Signal integrity protection in industrial equipment

Procurement Notes

Verify the specific manufacturer part number against official Wurth Elektronik documentation to ensure authenticity. Confirm that the AEC-Q200 qualification status matches project requirements. Check datasheet specifications for impedance tolerance and current ratings prior to final selection. Ensure compliance with RoHS and REACH directives as stated in official product literature.

Selection Notes

Select this component when high DC current capacity is required alongside effective high-frequency noise attenuation. The 10 A rating distinguishes it from standard signal-line ferrites. Consider the 3312 package size for board space constraints. Verify thermal performance within the specified -55°C to +125°C operating range for the intended environment.

Part Context

This component belongs to the WE-MPSA series of multilayer chip ferrite beads. Unlike snap-on rings, this is a solid-state SMD device offering consistent electrical characteristics without air gaps. It serves as a passive EMI suppression element integrated directly into PCB traces.
