7847806151

Fixed Inductors Overview

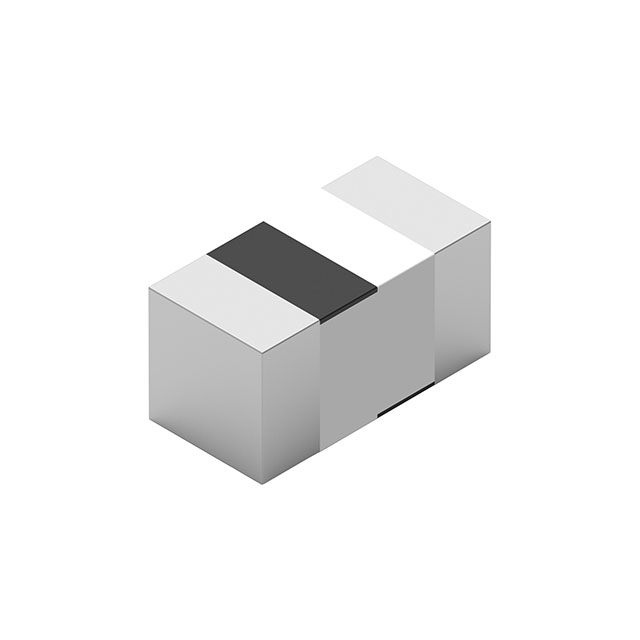

The Würth Elektronik 7847806151 is a shielded multilayer RF inductor from the WE-MCI series, housed in a 0603 (1608 metric) surface-mount package. It features a nominal inductance of 150 nH with a tolerance of ±20%. The component has a maximum DC resistance of 1.2 Ohms and supports a maximum DC current of 0.3 A. It exhibits a minimum Q factor of 8 and an self-resonant frequency of 1.9 GHz. Designed for high-frequency applications, it operates within a temperature range of -55°C to +125°C and holds AEC-Q200 qualification.

Fixed Inductors Feature Summary

• Shielded multilayer ceramic construction minimizes electromagnetic interference
• AEC-Q200 qualified for automotive reliability standards
• Optimized for high-frequency signal processing applications

Fixed Inductors Applications

• Automotive electronics systems
• High-frequency circuit filtering
• RF impedance matching networks

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the required electrical parameters, such as inductance value and current ratings, align with the design specifications. Check for any specific ordering suffixes or packaging requirements defined in the datasheet. Ensure compliance with RoHS directives and other relevant environmental regulations before procurement.

Fixed Inductors Selection Notes

Select this component when a shielded RF inductor with low parasitic effects is required in a compact 0603 footprint. Consider the 150 nH inductance and 1.9 GHz self-resonant frequency for suitable frequency band operation. Evaluate the 0.3 A current rating against the circuit's maximum DC bias requirements. The AEC-Q200 certification makes it suitable for automotive environments requiring robust performance across wide temperature ranges.

Fixed Inductors Part Context

This component belongs to the WE-MCI series of shielded multilayer ceramic inductors from Würth Elektronik. These components are engineered for high-frequency applications where size and shielding are critical. The series offers various inductance values in standard SMD packages, providing consistent performance characteristics for RF and high-speed digital circuits.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available.
