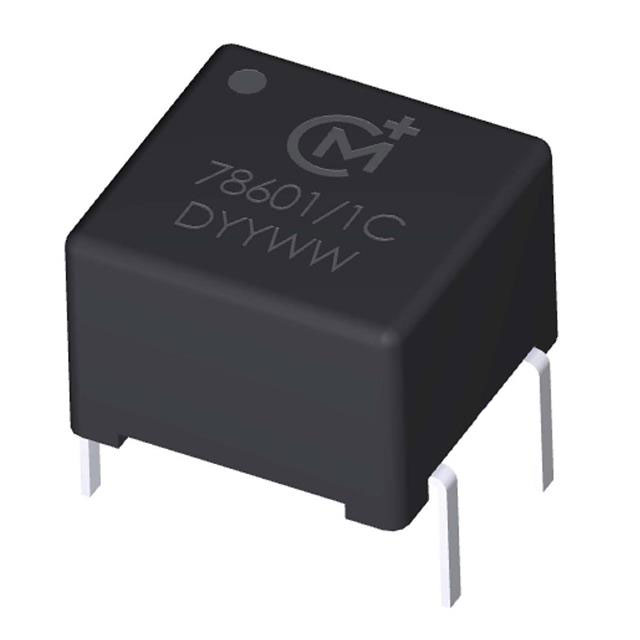

78601/16C

$1.33

Description：TRANSFORMER 1:1:1 5000UH 28VUS
Series：786
Mfr：Murata Power Solutions Inc.
Package：Tube

SKU:aa41b50208c4 Category: Pulse Transformers Brand: Murata Power Solutions Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TRANSFORMER 1:1:1 5000UH 28VUS
Series：786
Mfr：Murata Power Solutions Inc.
Package：Tube
Transformer Type：General Purpose
Inductance：4mH
ET (Volt-Time)：28VµS
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Through Hole
Size / Dimension：0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max)：0.250" (6.35mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

78601/16C

Overview

The Murata Power Solutions 78601/16C is a through-hole pulse transformer with a 1:1 turns ratio and 5 mH primary inductance. It features a 28 Vµs voltage-time rating and 1000 Vrms insulation voltage. The component measures 9.52 mm in length, 9 mm in width, and 6.35 mm in height. It operates within a temperature range of 0°C to +70°C and complies with RoHS standards.

Feature Summary

Provides galvanic isolation via high insulation voltage
Designed for general-purpose pulse transmission applications
Supports through-hole PCB mounting for mechanical stability

Applications

Pulse transformer circuits requiring 1:1 isolation
General-purpose signal coupling in industrial electronics
Power supply control circuitry

Procurement Notes

Verify the specific suffix '16C' against official Murata documentation to confirm exact electrical tolerances and packaging configuration. Ensure the procurement channel sources directly from authorized distributors to guarantee component authenticity and traceability. Cross-reference the datasheet revision date to ensure compatibility with current design requirements.

Selection Notes

Select this component when a 1:1 isolated pulse transformer with 5 mH inductance is required. The 28 Vµs rating defines the maximum volt-second product capability. Consider the 0°C to +70°C operating range for environmental suitability. Verify that the through-hole DIP package fits the target PCB layout constraints.

Part Context

This part belongs to the Murata 786 series of pulse transformers. The series offers various turns ratios and inductance values for different isolation needs. The 78601/16C specifically addresses applications needing unity gain isolation with moderate inductance. It complements other variants like the 78602 series which offer different winding configurations.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official Murata documentation for potential cross-references or updated series replacements.
