79425-432HLF

Headers, Male Pins Overview

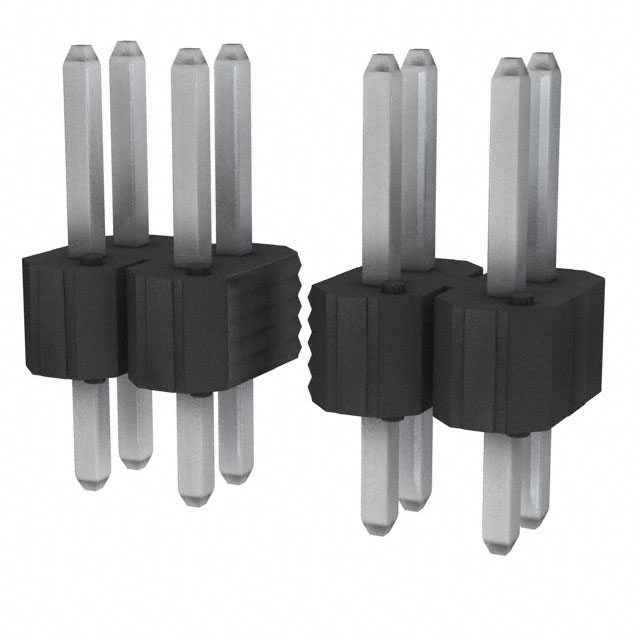

The Amphenol ICC (FCI) 79425-432HLF is a BergStik unshrouded header designed for board-to-board interconnections. It features a 2.54 mm pitch and a double-row configuration with 32 positions. The connector utilizes through-hole solder pin termination with straight mounting angles. Contact materials consist of phosphor bronze with tin plating, rated for 3 A current. The housing is black thermoplastic with UL 94 V-0 flammability rating. Operating temperature ranges from -65 C to +125 C, with an insulation resistance of 5 GOhms.

Headers, Male Pins Feature Summary

• Unshrouded double-row design for compact board-to-board connections
• Through-hole solder pin termination ensures secure PCB mounting
• Tin-plated phosphor bronze contacts provide reliable conductivity
• Thermoplastic housing meets UL 94 V-0 flammability standards

Headers, Male Pins Applications

• Board-to-board signal transmission
• Industrial control systems
• Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and material specifications. Ensure the component matches the required row count and position quantity for the target application. Confirm RoHS compliance status directly with the supplier documentation before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, unshrouded header is required for high-density board stacking. The 2.54 mm pitch offers standard spacing compatibility. Verify that the mating connector aligns with the male pin configuration and that the tail length suits the PCB thickness requirements.

Headers, Male Pins Part Context

This part belongs to the BergStik series by Amphenol ICC (FCI), specializing in versatile interconnect solutions. The 79425 series provides various position counts and configurations. This specific model represents a mid-range position count within the double-row unshrouded header category.

Headers, Male Pins Replacement Considerations

Cross-reference with other 79425 series variants such as 79425-450HLF or 79425-462HLF if position count adjustments are needed. Ensure identical pitch, row configuration, and termination style for direct mechanical substitution.
