7A-36.000MBBK-T

Crystals Overview

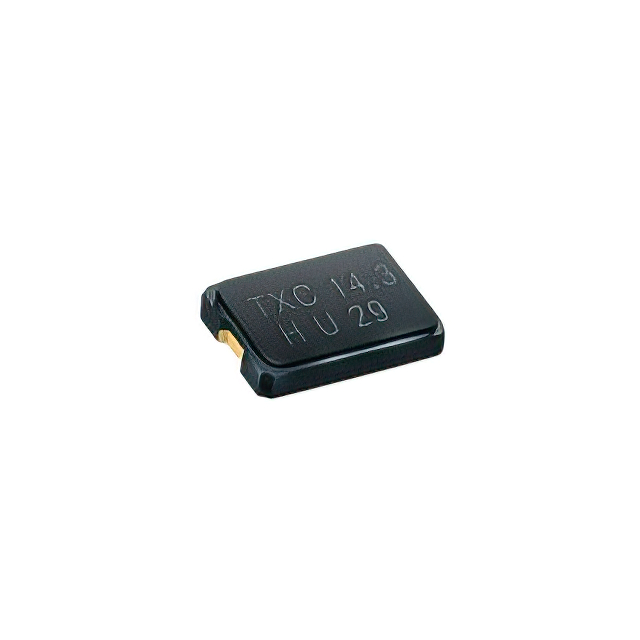

The FTS 7A-36.000MBBK-T is a surface-mount fundamental mode crystal oscillator operating at 36 MHz. It features a frequency tolerance and stability of ±50 ppm, with a load capacitance of 20 pF and an equivalent series resistance (ESR) of 50 Ohms. The component measures 5.00 mm x 3.20 mm in a 2-SMD, no-lead package, with a maximum seated height of 1.35 mm. It supports a drive level up to 200 μW and operates within a temperature range of -20°C to +70°C.

Crystals Feature Summary

• Fundamental oscillation mode for stable signal generation
• Surface mount design for automated assembly integration
• RoHS compliant construction for environmental safety

Crystals Applications

• Bluetooth wireless communication modules
• Mobile phone circuitry
• USB interface cards

Crystals Procurement Notes

Verify the specific manufacturer designation, as some sources associate this part number with TXC Corporation while others list FTS. Confirm the exact package style (2-SMD vs 4-SMD) and ESR value against the official datasheet provided by the supplier to ensure compatibility with the target circuit design.

Crystals Selection Notes

Select this component when a 36 MHz fundamental frequency with ±50 ppm stability is required for space-constrained applications. Ensure the host circuit provides the specified 20 pF load capacitance and that the operating environment remains within the -20°C to +70°C range for optimal performance.

Crystals Part Context

This component belongs to the 7A series of surface-mount crystals, designed for high-reliability consumer electronics. It serves as a timing reference for digital systems requiring precise clock signals, offering a compact footprint suitable for modern PCB layouts where space efficiency is critical.

Crystals Replacement Considerations

The 7B-36.000MAAJ-T from TXC Corporation is a similar 36 MHz SMD crystal but differs in package size (4-SMD) and electrical specifications. Verify pinout and mechanical dimensions before substitution.
