7B-11.0592MAAE-T

Crystals Overview

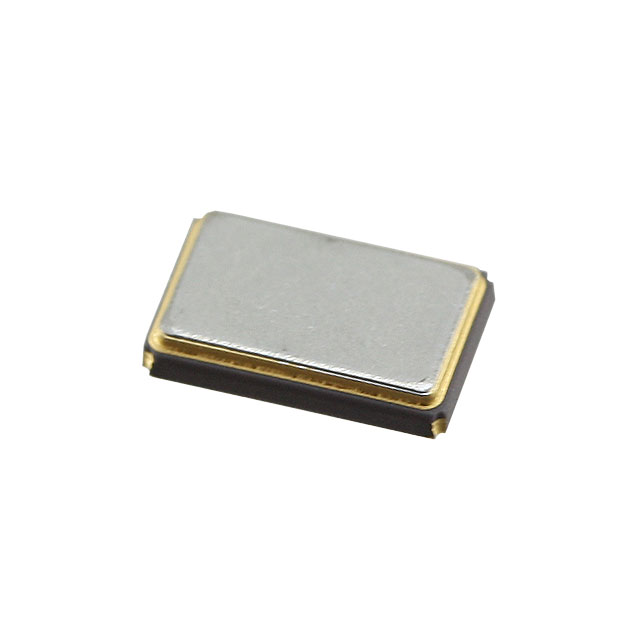

The TXC Corporation 7B-11.0592MAAE-T is a surface-mount crystal resonator designed for precision timing applications. It operates at a nominal frequency of 11.0592 MHz with a frequency tolerance of ±30 ppm and a load capacitance of 12 pF. The component features an equivalent series resistance (ESR) of 150 Ohms and utilizes a ceramic package in the 4-SMD, No Lead configuration. Physical dimensions are 5.0 mm in length, 3.2 mm in width, and 1.6 mm in maximum height. It supports fundamental mode operation and functions within a temperature range of -40°C to +85°C.

Crystals Feature Summary

• Compact 5x3.2mm ceramic package suitable for space-constrained designs
• Fundamental mode operation for stable frequency generation
• Surface-mount construction for automated assembly

Crystals Applications

• Precision timing circuits in embedded systems
• Clock source generation for microcontrollers
• Communication interface synchronization modules

Crystals Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific lot traceability requirements prior to procurement. Ensure storage conditions adhere to moisture sensitivity level guidelines to maintain performance integrity upon installation.

Crystals Selection Notes

Select this component when a 11.0592 MHz clock signal is required with ±30 ppm stability. The 5.0 x 3.2 mm footprint offers a balance between size and thermal performance compared to smaller alternatives. Consider the 150 Ohm ESR value for oscillator circuit design compatibility.

Crystals Part Context

This part belongs to the 7B Series of miniature crystals from TXC Corporation. The series focuses on providing reliable timing solutions in compact ceramic packages. The 7B designation indicates specific dimensional and electrical characteristics distinct from other TXC crystal lines such as the AV or TC series.

Crystals Replacement Considerations

Direct substitutes include the 7V-11.0592MAAE-T and 7B-11.0592MAAQ-T. Verify that replacement parts match the 12 pF load capacitance and 150 Ohm ESR specifications to ensure circuit compatibility.
