7BCF10

$84.57

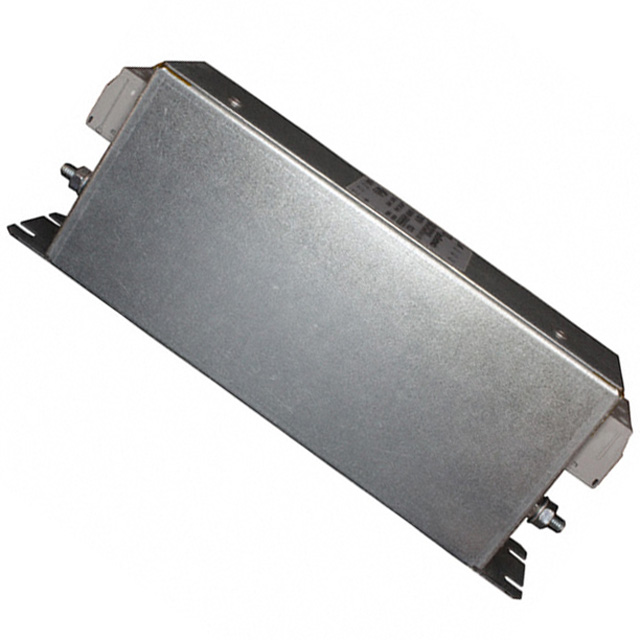

Description：LINE FILTER 7A CHASSIS MOUNT
Series：BCF
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:aad3da1ca829 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 7A CHASSIS MOUNT
Series：BCF
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：7:00 AM
Frequency - Operating：50/60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：UR, VDE
Operating Temperature：-10°C ~ 50°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

7BCF10

Overview

The 7BCF10 is a three-phase (Delta) EMC/EMI line filter from the TE Connectivity Corcom Filters series. It supports a rated current of 7 A and operates at frequencies of 50 Hz or 60 Hz. The component features a two-stage configuration with terminal block termination. Rated voltage is 480 VAC, and it has a leakage current of 30 mA. Certified by UL and VDE, this chassis-mount filter provides high-frequency attenuation for industrial applications.

Feature Summary

Provides high-frequency attenuation for universal industrial applications
Compact bookform design suitable for space-constrained installations
Two-stage filtering configuration for enhanced noise suppression

Applications

Universal industrial equipment requiring EMI/RFI suppression
Three-phase Delta power distribution systems
Chassis-mounted electronic enclosures

Procurement Notes

Verify that the application requires a three-phase Delta configuration, as this filter is not compatible with Wye systems. Confirm the terminal block interface matches existing wiring harnesses. Ensure the operating frequency aligns with 50 Hz or 60 Hz requirements. Check that the 480 VAC rating exceeds the system voltage to prevent insulation breakdown.

Selection Notes

Select this model when high-frequency attenuation is critical for three-phase Delta circuits. The compact bookform style aids in dense panel layouts. Verify that the 7 A current rating accommodates peak loads without saturation. Consider the terminal block connection method if screw-type fastening is preferred over quick-connect terminals.

Part Context

This component belongs to the TE Connectivity Corcom Filters product line, specializing in power line filters for electromagnetic interference mitigation. The 7BCF10 specifically addresses three-phase needs, distinguishing it from single-phase variants within the broader catalog. It serves as a specialized solution for industrial-grade noise reduction.
