7BCF10R

Overview

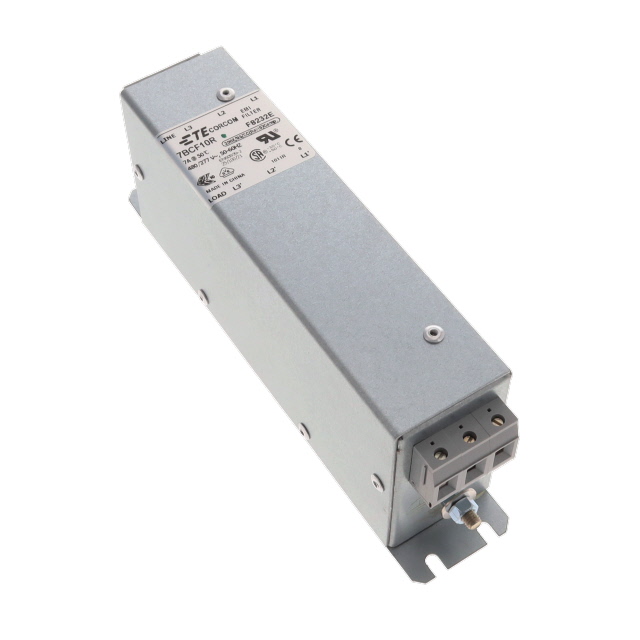

The TE Connectivity Corcom Filters model 7BCF10R is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 7 A and operates at 277 VAC with a frequency range of 50/60 Hz. The component features a two-stage configuration and utilizes terminal block connections. Key electrical specifications include an inductance value of 2.43 mH.

Feature Summary

• Provides electromagnetic interference suppression through a two-stage filtering architecture
• Engineered for three-phase Delta power system integration
• Facilitates secure electrical connections via terminal block interface

Applications

• Industrial control systems
• Consumer electronics manufacturing equipment
• Automotive systems testing infrastructure
• IoT hardware development platforms

Procurement Notes

Verify the specific datasheet version to confirm terminal block orientation and mounting hole dimensions. Ensure the input voltage rating aligns with the 277 VAC specification. Confirm that the three-phase Delta configuration matches the target circuit topology before finalizing procurement orders.

Selection Notes

Select this component when a three-phase Delta configuration is required for EMI suppression. The 7 A current rating suits moderate-power industrial loads. Verify that chassis mounting constraints accommodate the physical footprint and that terminal block wiring methods are compatible with the assembly process.

Part Context

This part belongs to the TE Connectivity Corcom Filters power line filter module series. These components are engineered for general-purpose noise reduction in electronic systems. The product line emphasizes reliable performance across various industrial and commercial environments while maintaining compliance with relevant safety standards.

Replacement Considerations

No public substitute part numbers are confirmed for this specific component.
