7BCF6R

Overview

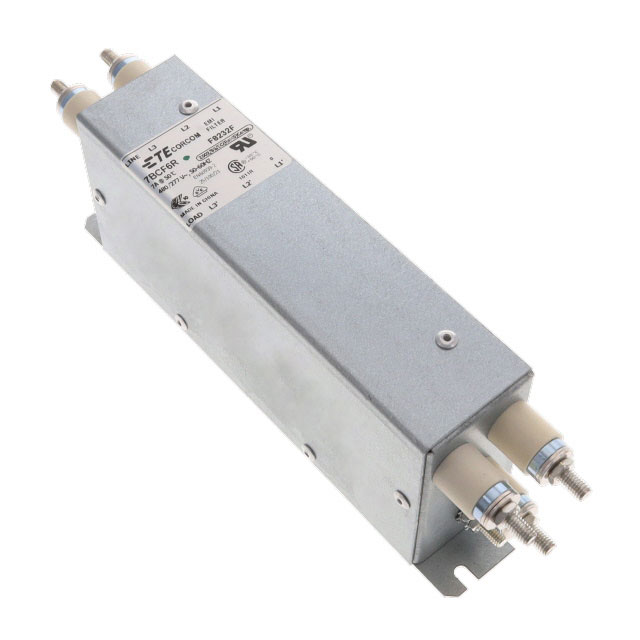

The TE Connectivity Corcom Filters 7BCF6R is a three-phase (Delta) power line filter designed for chassis mounting. It operates at a rated voltage of 277 VAC with a current rating of 7 A at 50/60Hz. The unit features a two-stage filtering configuration utilizing a measured inductance of 2.43mH and capacitance of 0.1µF. Maximum leakage current is specified at 8.7mA. The component uses M5 threaded posts for connection and is packaged in bulk.

Feature Summary

• Two-stage filtering topology combining common-mode and differential-mode suppression
• Chassis mount installation style with M5 threaded post connections
• General purpose RFI/EMC/EMI attenuation for three-phase delta systems

Applications

• Industrial machinery power input protection
• Three-phase equipment EMI suppression
• General purpose AC power line filtering

Procurement Notes

Verify the specific datasheet version for the 7BCF6R part number to confirm exact electrical tolerances and mechanical dimensions before integration. Ensure the application environment supports the 277 VAC rating and 7 A continuous current capacity. Confirm that the chassis mounting method aligns with the M5 threaded post requirements. Check for any regional shipping restrictions or availability limitations associated with this specific manufacturer code.

Selection Notes

Select the 7BCF6R when a three-phase delta configuration is required for general-purpose RFI filtering. This model is suitable for applications needing a two-stage attenuation approach with a 7 A current handling capability. Consider the chassis mount form factor and M5 terminal interface during system design. Verify that the 8.7mA maximum leakage current meets safety standards for the intended installation environment.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, specifically within the BCF product family. It is categorized as an AC power entry module and power line filter. The part serves as an alternative identifier for 3-1609989-0. It is classified under the broader category of power entry modules designed for electromagnetic interference reduction in industrial power systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources for cross-reference data.
