7C-100.000MBB-T

Oscillators Overview

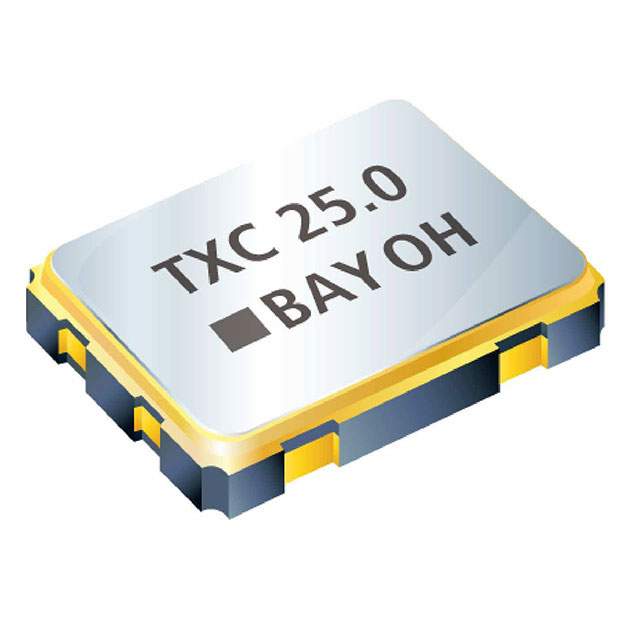

The TXC Corporation 7C-100.000MBB-T is a standard quartz crystal oscillator (XO) operating at a frequency of 100 MHz. It utilizes CMOS output format and functions within a supply voltage range of 2.5 V to 3.3 V. The component features enable/disable functionality and maintains a frequency stability of ±50 ppm. Designed for commercial applications, it operates reliably across a temperature range of -40°C to +85°C. The device is housed in a compact 4-SMD, No Lead surface-mount package with dimensions of 5.0 mm x 3.2 mm.

Oscillators Feature Summary

• Integrates CMOS output interface for digital logic compatibility
• Supports active enable and disable control states
• Utilizes standard quartz resonator technology for signal generation

Oscillators Applications

• General-purpose clock signal distribution in electronic systems
• Timing reference sources for embedded microcontrollers
• Synchronization circuits in consumer electronics hardware

Oscillators Procurement Notes

Verify current availability status as the component may be subject to discontinuation or limited stock conditions. Confirm that the specific ordering suffix matches the required voltage and output specifications. Ensure compliance with RoHS directives if applicable to your manufacturing requirements. Cross-reference datasheet revisions to confirm pinout consistency before finalizing procurement orders.

Oscillators Selection Notes

Select this model when a 100 MHz CMOS clock source is required in a small surface-mount footprint. Consider the ±50 ppm stability requirement against system timing tolerances. Verify that the 2.5V to 3.3V operating range aligns with the target circuit's power supply rails. Evaluate the -40°C to +85°C temperature range against environmental operating conditions.

Oscillators Part Context

This component belongs to the 7C series of standard oscillators manufactured by TXC Corporation. The series typically offers various frequencies and packages optimized for commercial-grade applications. The 7C-100.000MBB-T specifically addresses the need for precise timing in space-constrained designs using quartz technology.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for direct replacements or verify cross-reference data through official distributor channels.
