7CA0000008

Oscillators Overview

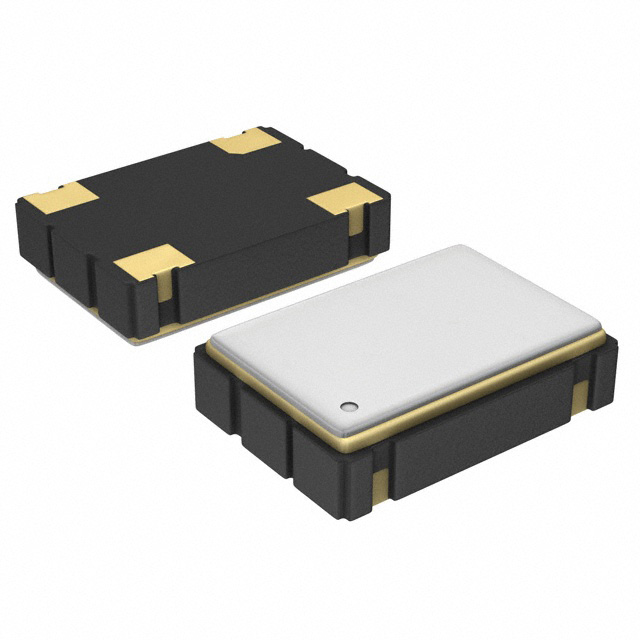

The TXC Corporation 7CA0000008 is a standard clock oscillator generating a 100MHz output frequency. It operates within a supply voltage range of 1.8V and supports a load capacitance of 15pF. The device functions reliably across an industrial temperature range from -40°C to +85°C. It utilizes CMOS output logic for signal transmission. The component is housed in a surface-mount package with dimensions of 3.2mm by 2.5mm.

Oscillators Feature Summary

• Generates a precise 100MHz clock signal using CMOS output logic
• Operates at a low supply voltage of 1.8V for power efficiency
• Designed for reliable performance across the full industrial temperature range

Oscillators Applications

• Digital signal processing systems requiring stable timing references
• Communication equipment utilizing high-speed data transmission
• Microcontroller-based embedded systems needing precise clock sources

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure compatibility with required voltage levels, frequency stability, and packaging formats. Confirm that the selected variant matches the intended operating temperature range and output logic requirements for the target application environment before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 100MHz frequency is required alongside a 1.8V supply constraint. Ensure the design accommodates the specified 15pF load capacitance and the 3.2mm x 2.5mm footprint. Validate that the operational environment remains within the -40°C to +85°C range to maintain specified performance characteristics.

Oscillators Part Context

This part belongs to the TXC standard clock oscillator series, designed for surface-mount applications. It provides a fixed-frequency solution for digital circuits, replacing discrete crystal and oscillator combinations. The 7CA series offers compact sizing suitable for space-constrained printed circuit board layouts in modern electronic devices.

Oscillators Replacement Considerations

Consult the official TXC cross-reference documentation for verified substitute part numbers. Direct replacements must match the 100MHz frequency, 1.8V supply, and 3.2x2.5mm package dimensions. Verify pinout compatibility and electrical specifications before substituting.
