7KEHD10ABSD

Overview

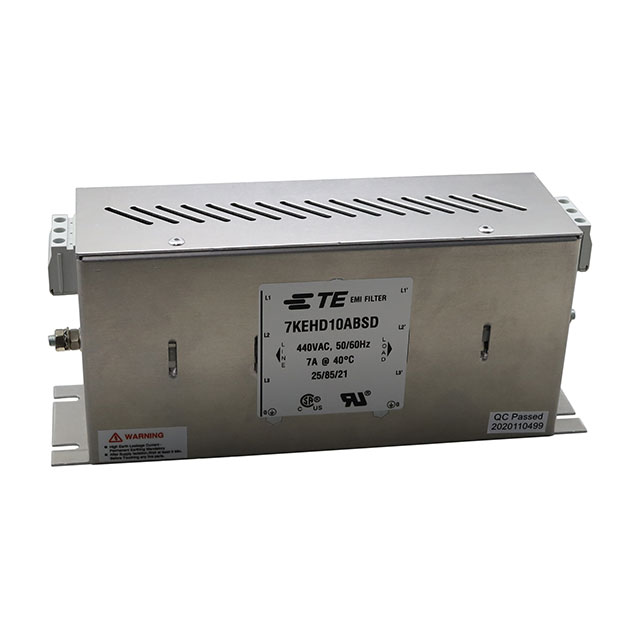

The TE Connectivity Corcom Filters 7KEHD10ABSD is a three-phase EMI/EMC power line filter designed for delta configurations. It operates at a rated voltage of 440 VAC and supports a current rating of 7 A at 50 Hz or 60 Hz frequencies. The unit features chassis mounting with screw termination and exhibits a leakage current of 15 mA. Physical dimensions are 320 mm in length, 70 mm in width, and 110 mm in height. It functions within an operating temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.

Feature Summary

• Provides two-stage electromagnetic interference suppression for three-phase delta systems
• Utilizes terminal block connections for secure electrical interfacing
• Engineered for robust chassis mounting applications

Applications

• Industrial automation equipment requiring EMC mitigation
• Three-phase power distribution systems operating at 440 VAC
• Climate control and HVAC machinery

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to potential counterfeit risks. Confirm specific datasheet revisions match installation requirements. Ensure environmental conditions align with the specified temperature range. Validate certification marks against local regulatory standards before deployment.

Selection Notes

Select this model when two-stage filtering is required for three-phase delta circuits. Ensure the 7 A current rating meets load demands. Verify chassis mounting space accommodates the 320 mm length. Confirm compatibility with 440 VAC systems and screw termination methods.

Part Context

This component belongs to the KEH series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 7KEHD10ABSD specifically addresses lower current needs within the high-performance delta configuration segment.

Replacement Considerations

No public confirmed substitute part numbers are available.
