7KEHD10BBSD

Overview

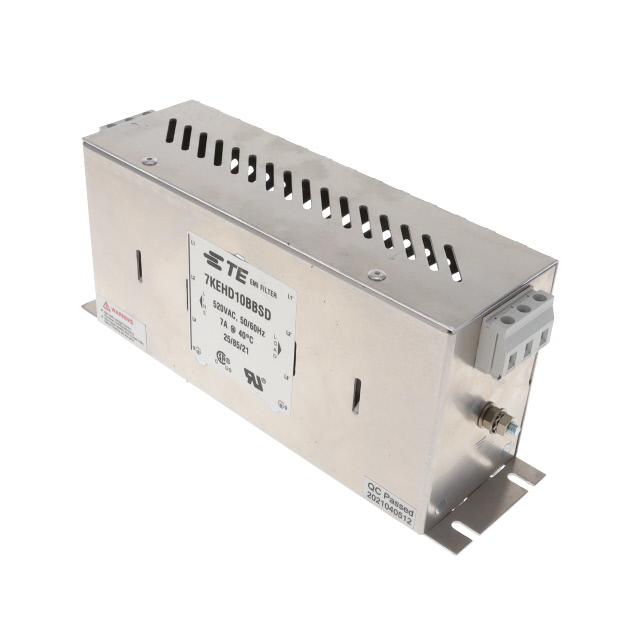

The TE Connectivity Corcom Filters 7KEHD10BBSD is a three-phase EMC/EMI power line filter designed for industrial applications. It supports a rated current of 7 A and operates at voltages up to 520 VAC. The unit features a two-stage filtering configuration with terminal block connections for secure mounting. Certified by UL and CSA, it functions within a temperature range of -25°C to +85°C at 50/60 Hz.

Feature Summary

• Two-stage EMI/RFI attenuation architecture
• Terminal block connection interface
• Chassis mount installation style

Applications

• Industrial machinery power conditioning
• Three-phase equipment noise suppression
• Electrical panel integration

Procurement Notes

Verify the specific voltage rating and current capacity against system requirements before procurement. Confirm that the terminal block connection type matches existing wiring infrastructure. Ensure chassis mounting provisions align with the enclosure design. Check for updated compliance certifications if required by local regulations.

Selection Notes

Select this component when a three-phase solution with moderate current handling is required. The terminal block interface suits fixed installations over quick-connect styles. Consider the physical dimensions and thermal environment during selection to ensure adequate heat dissipation and space allocation within the assembly.

Part Context

This part belongs to the Corcom series of power line filters from TE Connectivity. The series provides various configurations for single and three-phase systems. These filters are engineered to meet stringent electromagnetic compatibility standards for commercial and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify electrical parameters and mechanical fitment carefully when evaluating alternative components.
