Product Detailed Parameters
- Description：LINE FILTER 440VAC 7A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：7:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

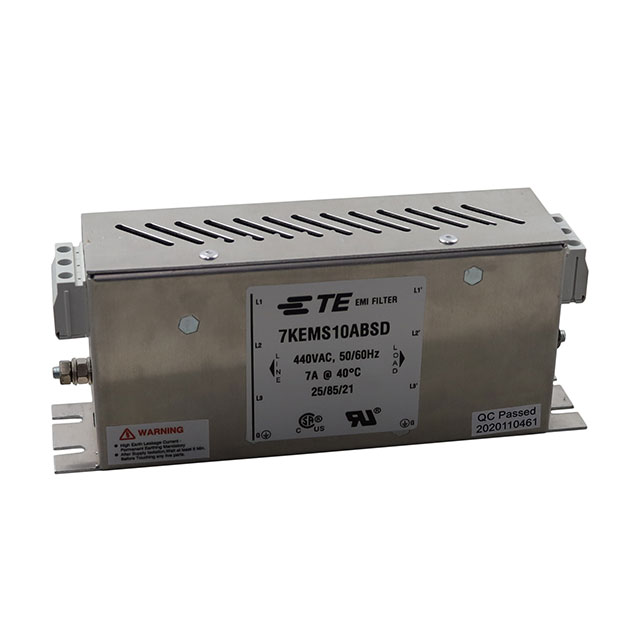

The 7KEMS10ABSD is a three-phase (Delta) EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a single-stage design rated for 7 A current and 440 VAC voltage at 50 Hz or 60 Hz operating frequencies. The unit utilizes terminal block termination and chassis mount installation. Key electrical specifications include a leakage current of 5 mA and an operational temperature range from -25 °C to +85 °C. Physical dimensions are 250 mm in length, 45 mm in width, and 85 mm in height.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase delta-connected power systems
- Utilizes a single-stage filtering architecture for noise suppression
- Designed for secure chassis mounting with terminal block connections
Applications
- Industrial automation equipment requiring three-phase power conditioning
- Manufacturing machinery sensitive to electromagnetic interference
- Power distribution units within industrial control panels
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential counterfeit risks. Confirm that the specific Delta configuration matches the target system wiring. Check for RoHS compliance documentation if required by project specifications. Ensure chassis mounting hardware compatibility with the specified terminal block interface before procurement.
Selection Notes
Select this model specifically for three-phase delta configurations requiring 7 A capacity. Verify that the 440 VAC rating aligns with the system voltage. Consider the physical dimensions for panel space allocation. Ensure the terminal block termination style suits the existing wiring infrastructure. Confirm thermal management requirements fit within the -25 °C to +85 °C operating range.
Part Context
This component belongs to the KEM series of high-performance EMI filters from TE Connectivity Corcom. The series is engineered for robust noise reduction in demanding industrial environments. The KEM line typically offers superior attenuation characteristics compared to standard filters. This specific part represents a single-stage solution optimized for delta-connected loads.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult TE Connectivity technical support for direct replacements or updated equivalents.
