Product Detailed Parameters
- Description：LINE FILTER 440VAC 7A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：7:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

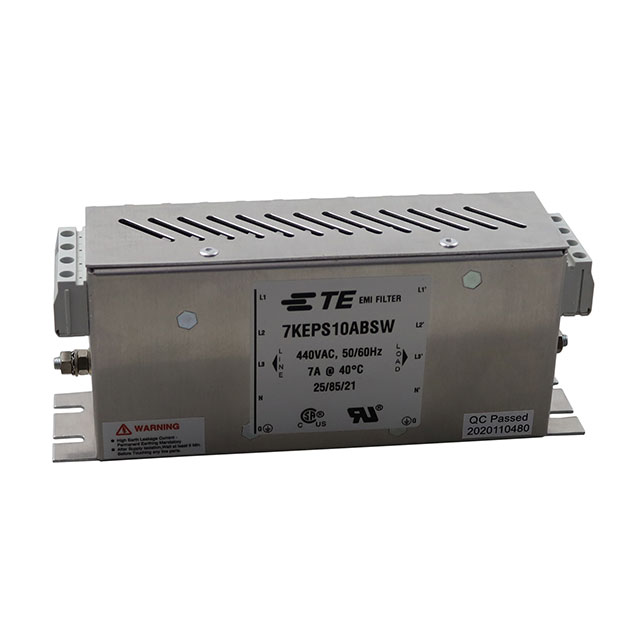

The 7KEPS10ABSW is a three-phase superior performance EMI power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with quick connect and screw termination options. The unit is rated for 440 VAC at 7 A, operating at 50 Hz or 60 Hz. Physical dimensions are 270 mm in length, 85 mm in width, and 135 mm in height. It supports a maximum operating temperature of +85°C and a minimum of -25°C. Leakage current is specified at 6 mA. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase wye systems
- Supports dual termination methods including quick connect and screw terminals
- Designed for chassis mounting applications
Applications
- Industrial automation equipment
- Power conditioning systems
- Electrical machinery requiring EMI suppression
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility. Confirm that the required voltage and current ratings match the application requirements. Check for any obsolescence notices or lifecycle status updates directly from the manufacturer before procurement planning.
Selection Notes
Select this model when a three-phase superior performance EMI filter is required for 440 VAC systems. Ensure the installation environment accommodates the specified chassis mount style and physical dimensions. Verify that the 7 A current rating and 6 mA leakage current meet the system specifications.
Part Context
This component belongs to the KEPS series of power line filters from TE Connectivity / Corcom. The series includes various current ratings and configurations for industrial power filtering. The 7KEPS10ABSW specifically addresses lower current three-phase applications within this product family.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and physical dimensions to ensure functional equivalence.
