Product Detailed Parameters
- Description：LINE FILTER 440VAC 7A CHASS MNT
- Series：KEV-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：7:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

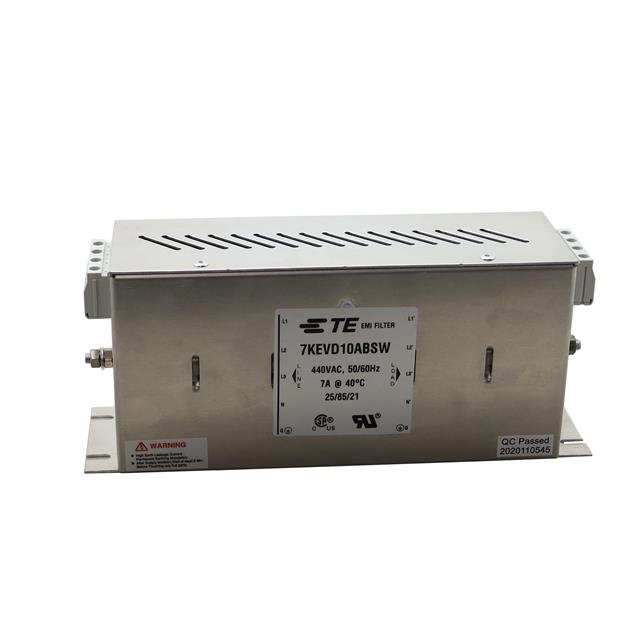

The 7KEVD10ABSW is a three-phase (Wye) EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It supports a current rating of 7 A at 440 V AC with an operating frequency of 50 Hz or 60 Hz. The component features a dual-stage configuration and utilizes terminal block connections for installation. Designed for chassis mounting, it provides effective noise suppression in industrial power distribution systems.
Feature Summary
- Dual-stage filtering architecture for enhanced EMI/EMC suppression
- Three-phase Wye configuration compatible with standard industrial power systems
- Terminal block termination method for secure electrical connections
Applications
- Industrial machinery power conditioning
- Manufacturing equipment noise suppression
- Commercial building power distribution systems
Procurement Notes
Verify the exact voltage and current requirements against the datasheet before ordering. Confirm that the terminal block interface matches your wiring infrastructure. Check for RoHS compliance status as specifications may vary by production batch. Ensure chassis mounting dimensions fit your enclosure design constraints prior to procurement.
Selection Notes
Select this model when dual-stage attenuation is required for three-phase applications. The terminal block interface suits environments where screw-down connections are preferred over quick-connect types. Verify that the 7 A rating aligns with the load requirements. Consider the physical dimensions for chassis integration during the selection process.
Part Context
This component belongs to the KE series of power line filters from TE Connectivity Corcom Filters. The series is designed for high-performance EMI/EMC suppression in demanding industrial environments. The specific model integrates dual-stage filtering within a robust chassis-mountable housing suitable for fixed installations.
Replacement Considerations
Consult official TE Connectivity documentation for direct substitutes. Verify that any replacement maintains the same three-phase Wye configuration and terminal block interface. Ensure equivalent current and voltage ratings are met. Cross-reference mechanical dimensions to guarantee compatibility with existing mounting structures.
