Product Detailed Parameters
- Description：LINE FILTER 520VAC 7A CHASS MNT
- Series：KEV-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：7:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

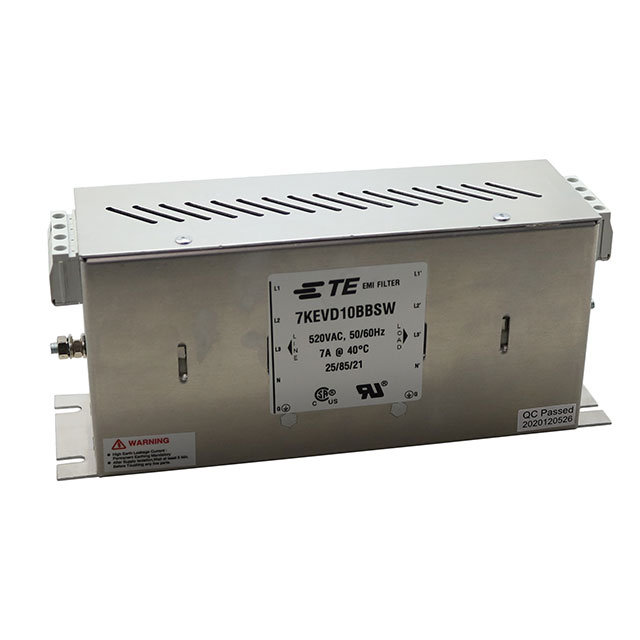

The 7KEVD10BBSW is a three-phase high-performance EMI power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with quick connect and screw termination types. The unit is rated for 520 VAC and supports a current capacity of 7 A at operating frequencies of 50 Hz and 60 Hz. Key electrical specifications include a leakage current of 11 mA. The component complies with UL and CSA standards.
Feature Summary
- Three-phase high-performance EMI filtering capability
- Chassis mount installation style
- Dual termination options including quick connect and screw
Applications
- AC/DC Drives
- HVAC Systems
- Robotics
- UPS Units
Procurement Notes
Verify the specific ordering suffix to ensure correct voltage and current ratings, as variations exist within the KEV series. Confirm compliance requirements such as UL and CSA certifications match project specifications. Check availability status as distribution may be limited or discontinued in certain regions. Ensure mechanical dimensions fit the intended chassis mounting space.
Selection Notes
Select this model for applications requiring 520 VAC input and 7 A continuous current handling in three-phase systems. Consider the chassis mount form factor and terminal types during mechanical integration. Verify that the 11 mA leakage current meets safety grounding requirements. Compare against other KEV series variants if higher current or different voltage ratings are needed.
Part Context
This component belongs to the TE Connectivity Corcom KEV series of power line filters. These filters are designed for industrial environments to suppress electromagnetic interference. The KEV series typically offers robust construction suitable for demanding applications involving motor drives and power electronics.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-references within the KEV series.
