7L-16.369MBG-T

Oscillators Overview

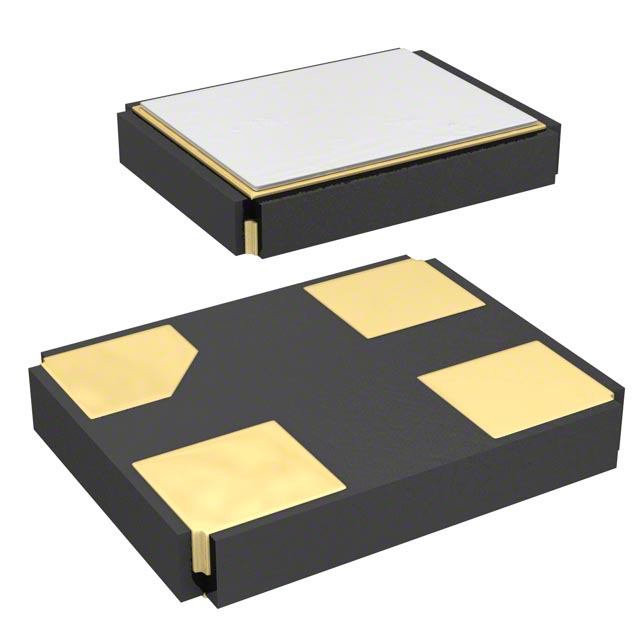

The TXC Corporation 7L-16.369MBG-T is a Temperature Compensated Crystal Oscillator (TCXO) designed for surface mount applications. It operates at a nominal frequency of 16.369 MHz with a clipped sine wave output. The device supports a supply voltage range of 1.8 V to 3.3 V and consumes a maximum current of 2 mA. Frequency stability is specified at ±0.5 ppm over the operating temperature range of -30°C to +85°C. The component utilizes a 4-SMD, No Lead package measuring 2.5 mm x 2.0 mm x 0.8 mm.

Oscillators Feature Summary

• Provides high frequency stability of ±0.5 ppm across the industrial temperature range.
• Features a compact 4-SMD surface mount package suitable for space-constrained designs.
• Supports low voltage operation with a wide supply range from 1.8 V to 3.3 V.

Oscillators Applications

• GPS navigation systems
• WiMAX communications infrastructure
• Cellular wireless devices

Oscillators Procurement Notes

Verify the specific suffix configuration against the manufacturer's official datasheet to ensure correct voltage and stability specifications. Confirm RoHS compliance status and lead-free certification prior to integration. Check for any recent product discontinuation notices or lifecycle changes directly from TXC Corporation documentation.

Oscillators Selection Notes

Select this component when precise frequency accuracy is required in mobile or portable electronics. The low power consumption and small form factor make it suitable for battery-operated devices. Ensure the application environment stays within the -30°C to +85°C operational limits to maintain the specified ±0.5 ppm stability.

Oscillators Part Context

This part belongs to the TXC 7L series of TCXOs, which are engineered for GPS and wireless communication markets. The series offers various frequency options and package sizes, providing designers with flexibility for different board layouts and performance requirements in modern electronic systems.

Oscillators Replacement Considerations

Consult the TXC 7L Series Part Number Guide for direct substitutes. Verify pin compatibility and electrical parameters before swapping with other models in the 7L family.
