7L-19.200MDV-T

Oscillators Overview

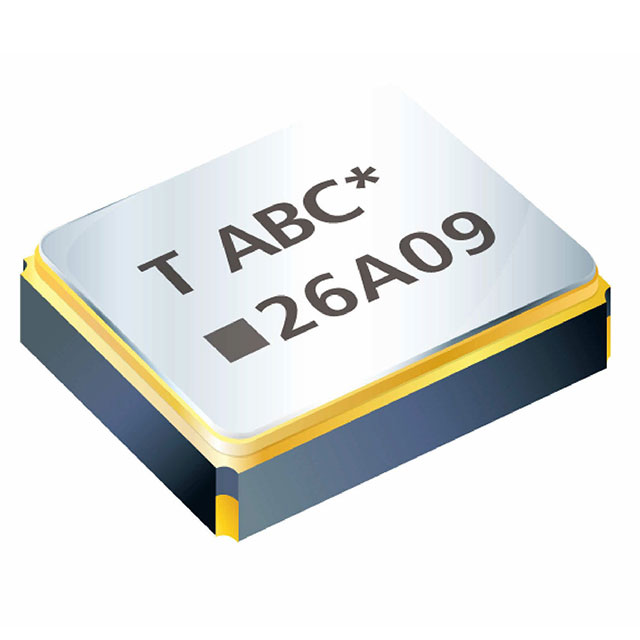

The 7L-19.200MDV-T is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by TXC Corporation, classified under the VCTCXO product type within the 7L series. It operates at a nominal frequency of 19.2 MHz with a frequency stability of 2 ppm. The device supports a supply voltage range from 1.8 V to 3.3 V and delivers a sine wave output format. Designed for surface mount technology, it features a compact 4-SMD, No Lead package measuring 2.5 mm in length, 2.0 mm in width, and 0.8 mm in height. The component is rated for an operating temperature range between -40°C and +85°C.

Oscillators Feature Summary

• Integrated temperature compensation mechanism ensures high frequency stability of 2 ppm across the operational temperature range.
• Compact 4-SMD surface mount package design facilitates efficient PCB layout and space-constrained applications.
• Supports low-voltage operation with a supply range of 1.8 V to 3.3 V, suitable for portable and battery-powered systems.

Oscillators Applications

• Mobile communication devices requiring precise clock synchronization
• Wireless networking equipment utilizing 19.2 MHz reference frequencies
• Embedded systems needing stable timing sources in varying thermal environments

Oscillators Procurement Notes

Verify the specific ordering suffix 'MDV' against the official TXC Corporation datasheet to confirm the exact output waveform configuration and pinout compatibility. Ensure that the selected variant matches the required load capacitance and voltage levels for the target circuit design. Cross-reference the RoHS status and moisture sensitivity level with project requirements before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a low-profile TCXO with 2 ppm stability is required for 19.2 MHz applications. Consider the 1.8 V to 3.3 V supply range and sine wave output when interfacing with compatible microcontrollers or RF front-ends. Evaluate the -40°C to +85°C operating range against environmental conditions to ensure reliable performance throughout the system's lifecycle.

Oscillators Part Context

This oscillator belongs to the 7L series of VCTCXOs from TXC Corporation, designed for high-performance timing applications. The series is characterized by its small form factor and robust frequency stability, making it suitable for modern electronic devices where size and precision are critical constraints.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TXC Corporation directly for current equivalent models or updated series replacements if this specific variant becomes obsolete.

Oscillators FAQ

What is the output waveform of the 7L-19.200MDV-T?

The 7L-19.200MDV-T provides a sine wave output format.

What is the frequency stability specification for this TCXO?

The frequency stability is specified as 2 ppm over the operating temperature range.
