7M-10.000MAAJ-T

Crystals Overview

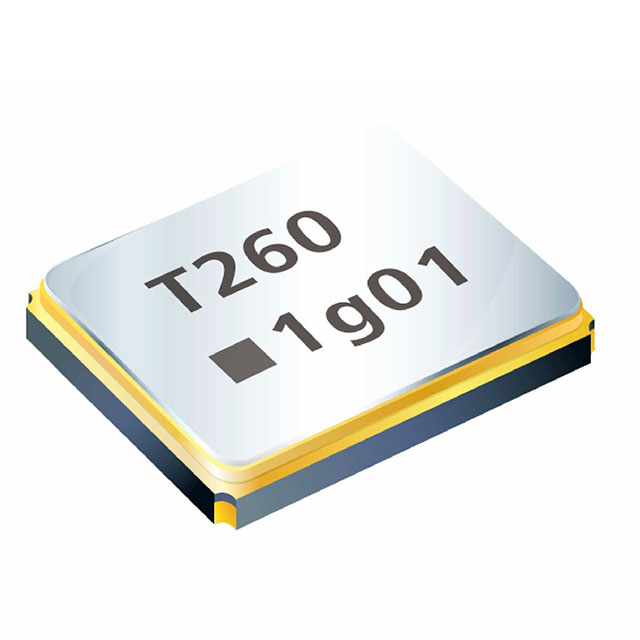

The 7M-10.000MAAJ-T is a surface-mount quartz crystal manufactured by TXC Corporation, designed for precision timing applications. It operates at a fundamental frequency of 10 MHz with a frequency tolerance and stability of ±30 ppm. The component features an equivalent series resistance (ESR) of 100 Ohms and requires a load capacitance of 18 pF. It utilizes a 4-SMD, No Lead package measuring 5.00 mm in length, 3.20 mm in width, and 1.05 mm in height. The device supports a standard operating temperature range from -20°C to +70°C.

Crystals Feature Summary

• Provides stable 10 MHz fundamental frequency generation with ±30 ppm accuracy
• Utilizes compact 4-SMD No Lead surface mount packaging for automated assembly
• Operates reliably within industrial temperature ranges of -20°C to +70°C

Crystals Applications

• Microcontroller clock source circuits
• Digital communication interface timing
• General-purpose electronic timing systems

Crystals Procurement Notes

Verify the specific ordering suffix and manufacturer part number against official TXC documentation to ensure compatibility with design requirements. Confirm RoHS compliance status and lead times through authorized distributors. Validate that the selected variant matches the required frequency tolerance and load capacitance specifications before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 10 MHz fundamental mode crystal is required with ±30 ppm stability. Ensure the circuit design accommodates the 100 Ohm ESR and 18 pF load capacitance. Verify that the 5.00 x 3.20 mm footprint fits the PCB layout constraints. Confirm the -20°C to +70°C temperature range meets the operational environment requirements.

Crystals Part Context

This component belongs to the 7M series of surface-mount crystals from TXC Corporation. The series offers various frequencies and tolerances in standardized packages. The 7M-10.000MAAJ-T specifically addresses the need for a common 10 MHz reference signal in consumer and industrial electronics requiring moderate precision.

Crystals Replacement Considerations

The 7B-10.000MAAJ-T is documented as a similar replacement option, though it features different physical dimensions and higher ESR. Verify electrical parameters and mechanical fit before substitution.
