7M-24.000MEIJ-T

Crystals Overview

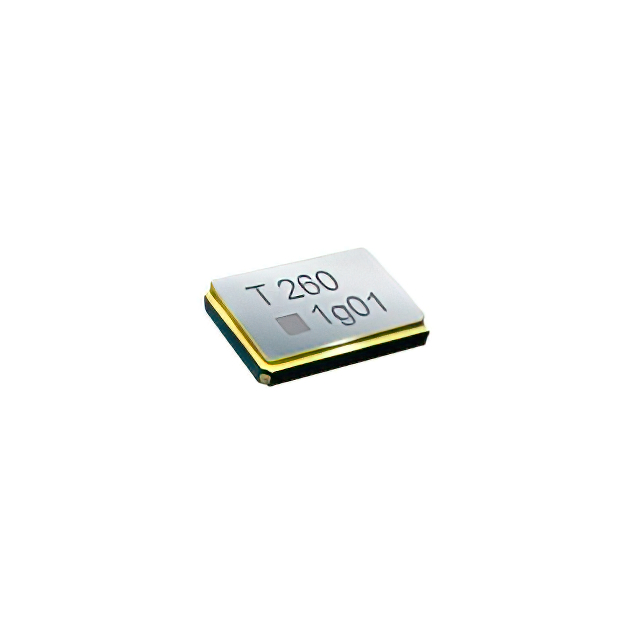

The FTS 7M-24.000MEIJ-T is a surface-mount fundamental quartz crystal oscillator designed for precision timing applications. It operates at a nominal frequency of 24 MHz with a frequency tolerance of ±10 ppm and stability of ±20 ppm. The component features a load capacitance of 18 pF and an equivalent series resistance (ESR) of 50 Ohms. It is housed in a compact 4-SMD, No Lead package with dimensions of 3.2x2.5 mm. The device supports tape and reel packaging and functions within an operating temperature range of -40°C to +85°C.

Crystals Feature Summary

• Fundamental mode quartz crystal operation providing stable oscillation
• Compact 4-SMD surface mount package for automated assembly
• Wide industrial temperature rating for reliable performance
• Low equivalent series resistance for efficient circuit integration

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing circuits
• Embedded system oscillators

Crystals Procurement Notes

Verify the specific manufacturer designation as some sources associate this part number with TXC Corporation rather than FTS. Confirm the load capacitance specification, as conflicting data indicates either 12 pF or 18 pF. Ensure the ordering suffix matches the required tolerance and packaging configuration before procurement to avoid functional mismatches.

Crystals Selection Notes

Select this component when a 24 MHz fundamental crystal is required in a small surface-mount footprint. Consider the ±10 ppm tolerance for standard digital logic timing. Verify that the 18 pF load capacitance aligns with the host circuit's design requirements. Ensure the operating temperature range meets the environmental conditions of the final application.

Crystals Part Context

This component belongs to the family of surface-mount fundamental quartz crystals. These devices are commonly used where space constraints limit the use of larger through-hole packages. The 3.2x2.5 mm form factor allows for high-density PCB layouts while maintaining the electrical characteristics necessary for precise frequency generation in modern electronic systems.

Crystals Replacement Considerations

Substitutes must match the 24 MHz frequency, 18 pF load capacitance, and 4-SMD 3.2x2.5 mm package. Equivalent parts should offer similar ±10 ppm tolerance and ESR specifications. Verify thermal performance and mounting compatibility before replacement.
