7R-26.000MDDB-T

Crystals Overview

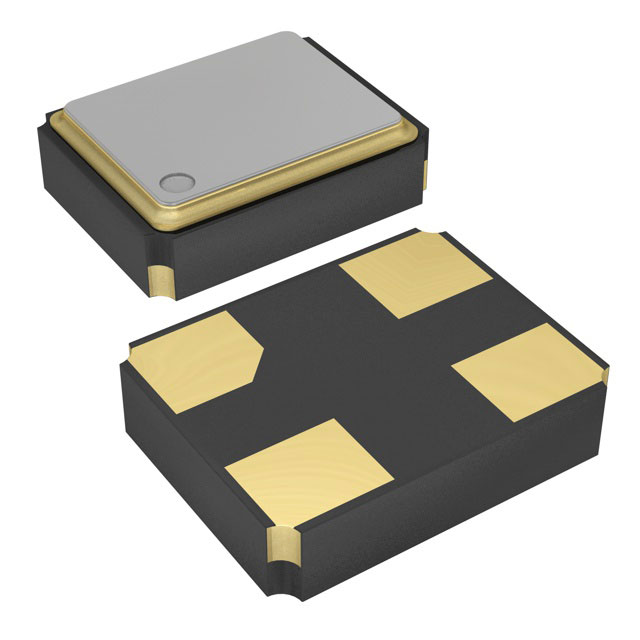

The 7R-26.000MDDB-T is a surface-mount quartz crystal manufactured by TXC Corporation, designed for precision timing applications. It operates at a fundamental frequency of 26 MHz with a load capacitance of 6 pF. The component features a tight initial tolerance and stability of ±20 ppm across the operating temperature range of -20°C to +70°C. It utilizes a glass-sealed package structure housed in a compact 4-SMD, no-lead footprint measuring 2.0 mm x 1.6 mm x 0.6 mm. The equivalent series resistance (ESR) is specified at 150 Ohms, ensuring reliable oscillation characteristics within automotive and industrial electronic circuits.

Crystals Feature Summary

• Glass-sealed construction provides enhanced environmental protection and long-term reliability.
• Compact 4-SMD no-lead package facilitates automated surface-mount assembly processes.
• High frequency stability of ±20 ppm ensures precise timing accuracy under varying conditions.

Crystals Applications

• Automotive infotainment and control systems
• Industrial communication modules
• Precision timing circuits requiring stable clock signals

Crystals Procurement Notes

Verify that the specific suffix 'DDB' corresponds to the required glass-sealed variant and 6 pF load capacitance, as standard variants may differ. Confirm the operating temperature range of -20°C to +70°C aligns with the target application's thermal environment. Ensure the 4-SMD no-lead footprint dimensions match the PCB land pattern design to prevent soldering defects during assembly.

Crystals Selection Notes

Select this component when a robust glass-sealed crystal is required for environments demanding higher durability than standard ceramic packages. The ±20 ppm stability is suitable for applications needing tighter frequency control than general-purpose crystals. Consider the 150 Ohm ESR value to ensure compatibility with the oscillator circuit's drive level requirements and startup performance specifications.

Crystals Part Context

This part belongs to the TXC 7R series of SMD glass-sealed crystals. This series is engineered for high-reliability applications where environmental stress resistance is critical. The 7R series distinguishes itself from standard ceramic-packaged crystals by offering superior hermetic sealing, which helps maintain frequency stability over extended periods and harsh operating conditions.

Crystals Replacement Considerations

• 7R-26.000MDD-T

Crystals FAQ

What is the physical package type of the 7R-26.000MDDB-T?

It uses a 4-SMD, no-lead package with dimensions of 2.0 mm x 1.6 mm x 0.6 mm.

Does this crystal feature a glass seal?

Yes, the 7R series utilizes a glass-sealed construction for improved environmental protection.
