7V-14.7456MAHJ-T

Crystals Overview

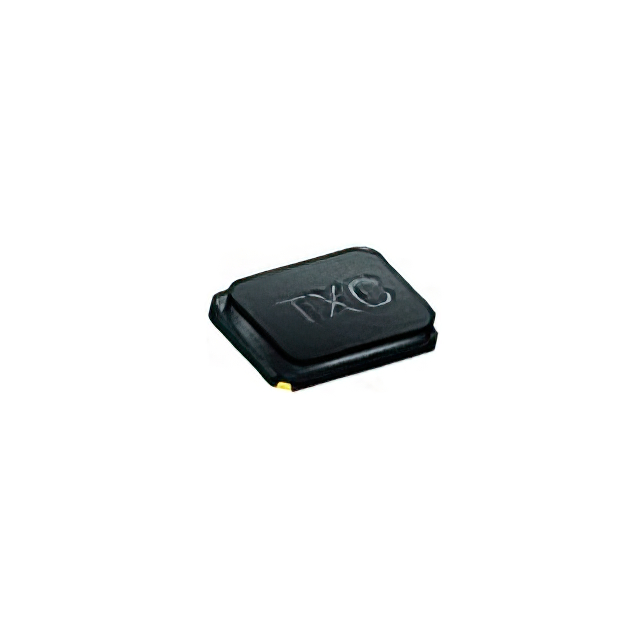

The FTS 7V-14.1456MAHJ-T is a surface-mount crystal oscillator operating at a nominal frequency of 14.7456 MHz. It features a frequency tolerance and stability of ±30 ppm, with a load capacitance of 18 pF and an equivalent series resistance (ESR) of 100 Ω. The component is housed in a 3.2 x 2.5 mm package and supports an operating temperature range from -40°C to +85°C.

Crystals Feature Summary

• Provides precise timing signals for digital circuits
• Compact surface-mount design for space-constrained applications
• Operates within extended industrial temperature ranges

Crystals Applications

• Communication systems requiring stable clock sources
• Audio equipment utilizing standard sampling rates
• Microcontroller-based embedded systems

Crystals Procurement Notes

Verify the manufacturer designation carefully, as this part number appears across multiple suppliers including TXC Corporation and FTS. Ensure the datasheet matches the specific electrical parameters required for your circuit design. Confirm RoHS compliance status directly with the supplier before placing orders to meet regulatory requirements.

Crystals Selection Notes

Select this component when a 14.7456 MHz frequency is necessary for video or audio synchronization standards. The ±30 ppm tolerance suits general-purpose timing needs rather than high-precision metrology. Consider the 18 pF load capacitance requirement to ensure proper oscillation with the host circuit's internal capacitors.

Crystals Part Context

This crystal belongs to the 7V series of surface-mount resonators. It serves as a fundamental timing element in electronic assemblies where cost-effective, reliable frequency generation is prioritized over ultra-high stability. The 3.2x2.5mm footprint allows for automated placement in standard SMD manufacturing processes.

Crystals Replacement Considerations

Cross-reference with other manufacturers offering identical 14.7456 MHz crystals in 3.2x2.5mm packages. Verify that substitute parts maintain the same 18 pF load capacitance and ±30 ppm tolerance to ensure circuit compatibility without redesign.
