7V24000007

Crystals Overview

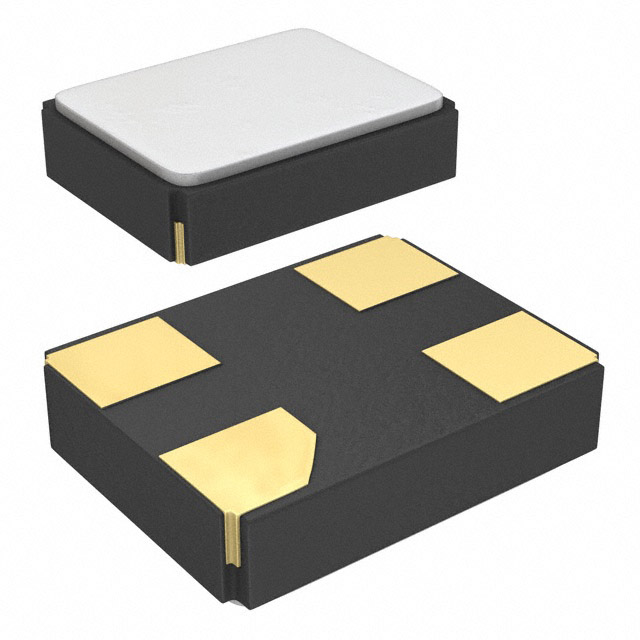

The 7V24000007 is a surface-mount crystal manufactured by TXC Corporation. It operates at a fundamental frequency of 24MHz with a load capacitance of 10pF. The component supports an operating temperature range from -10°C to +70°C. It utilizes a 3.2 mm x 2.5 mm package format for compact integration.

Crystals Feature Summary

• Surface-mount design for automated assembly
• Fundamental frequency operation at 24MHz
• Integrated 10pF load capacitance specification

Crystals Applications

• General purpose timing circuits
• Microcontroller clock sources
• Embedded system synchronization

Crystals Procurement Notes

Verify the specific RoHS compliance status through official documentation before procurement. Confirm that the -10°C to +70°C temperature range aligns with the target application environment. Ensure the 3.2mm x 2.5mm footprint matches the PCB layout requirements. Cross-reference the manufacturer part number to avoid substitution errors.

Crystals Selection Notes

Select this component when a 24MHz reference signal is required in a space-constrained design. The 10pF load capacitance simplifies circuit design by eliminating external capacitors. Consider the limited temperature range if the device will operate in extreme conditions. Verify compatibility with the host oscillator circuit specifications.

Crystals Part Context

This crystal belongs to the standard MHz crystal product line offered by TXC Corporation. It serves as a passive frequency control element within electronic assemblies. The component provides stable oscillation for digital logic and communication interfaces.

Crystals Replacement Considerations

Substitute only with components sharing identical electrical parameters and physical dimensions. Verify that alternative crystals support the same 10pF load capacitance and 24MHz frequency. Ensure the replacement part meets the required -10°C to +70°C operating temperature range.
