7X-19.200MBB-T

Oscillators Overview

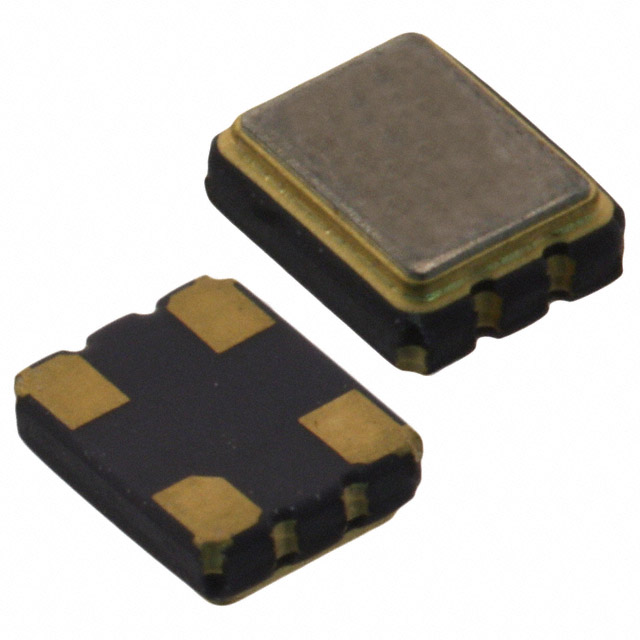

The 7X-19.200MBB-T is a standard clock oscillator manufactured by TXC Corporation, operating at a nominal frequency of 19.2 MHz. It utilizes CMOS output format and functions within a supply voltage range of 2.97 V to 3.63 V. The component exhibits a frequency stability of ±50 ppm and supports a load capacitance of 15 pF. Designed for surface mount technology, it measures 3.2 mm in length, 2.5 mm in width, and 1 mm in height. The device operates reliably across a temperature range from -10°C to +70°C.

Oscillators Feature Summary

• CMOS output interface compatible with digital logic circuits
• Surface-mount package design for automated assembly processes
• Standard clock oscillator functionality with defined frequency tolerance

Oscillators Applications

• General-purpose timing reference for embedded systems
• Clock source for microcontrollers and processors
• Synchronization in communication modules

Oscillators Procurement Notes

Verify the specific suffix 'BB' against the official TXC part number guide to confirm the exact temperature range and stability specifications. Ensure the required load capacitance matches the circuit design. Confirm RoHS compliance status through the manufacturer's documentation before integration into regulated products.

Oscillators Selection Notes

Select this component when a standard CMOS clock signal at 19.2 MHz is required with moderate stability. Consider the -10°C to +70°C operating range for environmental suitability. Evaluate the 3.2x2.5 mm footprint against available PCB space constraints during the layout phase.

Oscillators Part Context

This model belongs to the 7X series of tight stability oscillators produced by TXC Corporation. The series provides reliable timing solutions for various electronic applications requiring precise frequency generation without the complexity of voltage-controlled variants.

Oscillators Replacement Considerations

The 7X-19.200MBA-T is an alternative variant within the same series offering different stability characteristics.
