8-1609095-9

Overview

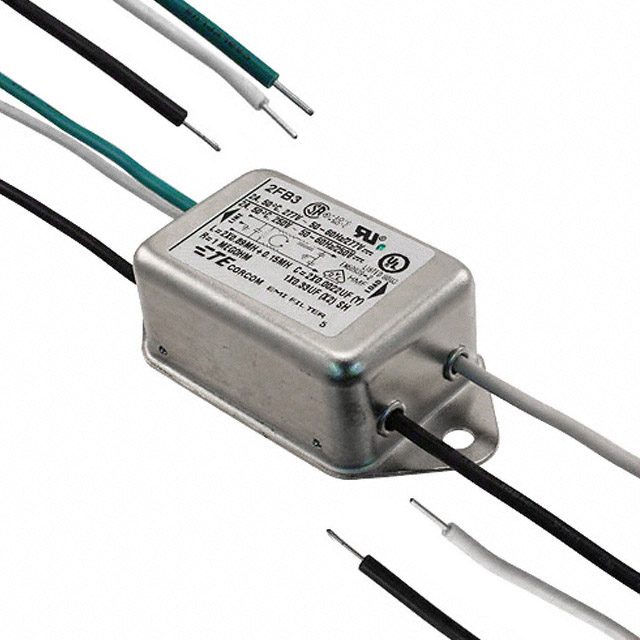

The TE Connectivity Corcom Filters model 8-1609095-9 is a single-phase EMC/EMI line filter designed for chassis mounting. It features wire leads for input and output connections and supports an operating frequency of 50 Hz or 60 Hz. The component has a current rating of 2 A and a voltage rating of 277 VAC/VDC. It utilizes a single-stage filtering configuration.

Feature Summary

• Single-stage EMI/RFI filtering capability
• Chassis mounting design with dedicated mounting holes
• Wire lead termination style

Applications

• General electronic equipment requiring EMI suppression
• Power supply input stages
• Industrial control systems

Procurement Notes

Verify the exact voltage rating context (277VAC vs 277VDC) against the official datasheet before integration, as sources vary in description. Confirm that the single-stage performance meets specific emission standards for the target application. Ensure chassis mounting hole dimensions align with the enclosure design to prevent mechanical interference during installation.

Selection Notes

Select this component when a low-current (2A), single-phase solution is required for chassis-mounted applications. It is suitable for environments where wire lead termination is preferred over quick-connect terminals. Consider the single-stage topology if higher attenuation levels are not strictly necessary for the specific noise profile.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 8-1609095-9 variant is distinct from the IEC receptacle-based modules (like the 1EC4) by using direct wire leads and a chassis mount form factor rather than panel-mount connector interfaces.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
