8-6609089-1

Overview

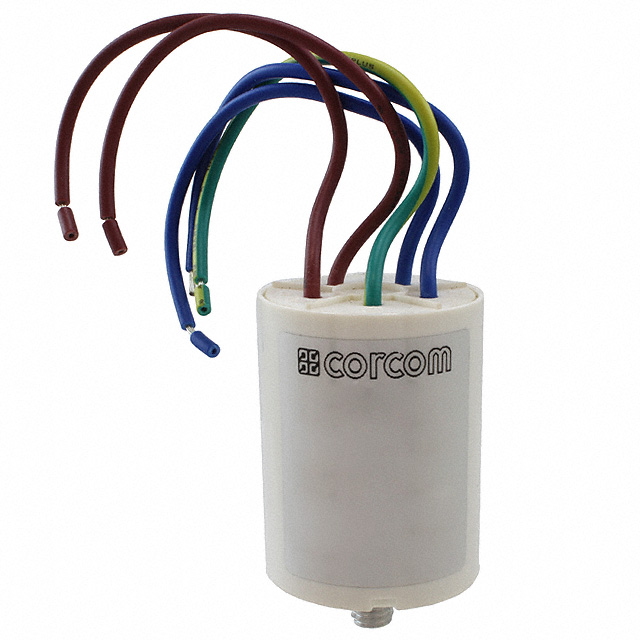

The TE Connectivity Corcom Filters part number 8-6609089-1 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 16 A and operates at voltages up to 250 VAC within the 50/60 Hz frequency range. The unit features a single-stage configuration with threaded installation and utilizes spade terminals for electrical connection.

Feature Summary

• Provides electromagnetic interference suppression through single-stage filtering architecture
• Engineered for secure mechanical attachment via threaded chassis mounting interface
• Facilitates rapid electrical integration using standard spade terminal connections

Applications

• Industrial equipment requiring EMI mitigation
• Commercial machinery power input stages
• General-purpose electronic systems

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with your system requirements. Confirm that the single-stage performance characteristics align with your noise suppression needs. Check for any recent product change notices or alternative package options available from authorized distributors before finalizing procurement plans.

Selection Notes

Select this component when a single-stage solution suffices for your application's noise profile. Ensure the chassis mounting method accommodates the threaded design. Verify that the 16 A current rating meets peak load demands. Confirm that spade terminals match your wiring harness specifications. Consider thermal management capabilities within the operating temperature range during system integration.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specializing in power line filtration solutions. The series offers various configurations tailored for different current ratings and mounting styles. This specific model addresses applications needing robust chassis-mounted protection against conducted emissions.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical specifications carefully to ensure equivalent performance metrics are maintained.
