800-10-001-10-004000

Headers, Male Pins Overview

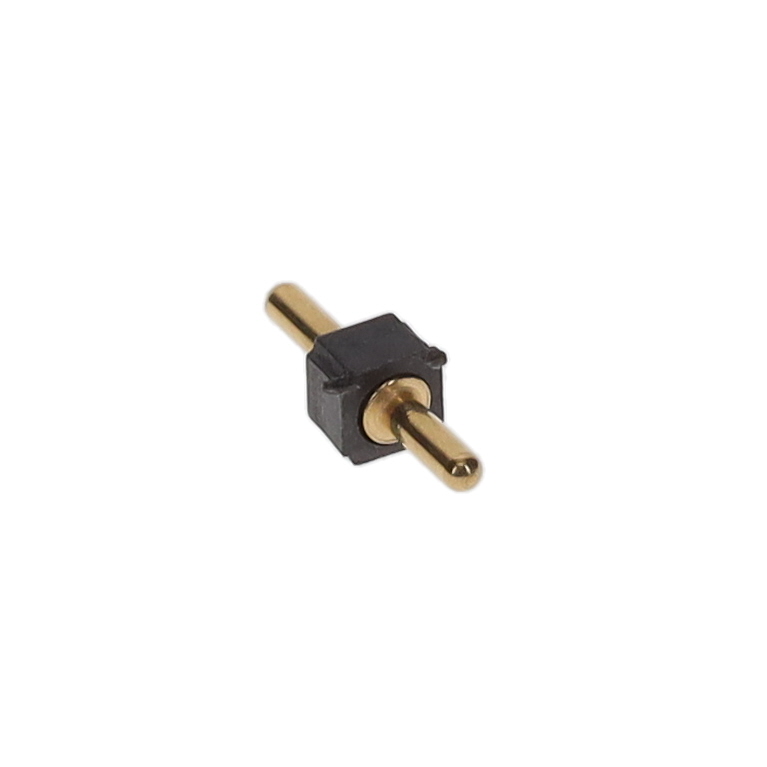

The Mill-Max Manufacturing Corp. model 800-10-001-10-004000 is a precision rectangular connector component designed for board-to-board or cable-to-board interconnection applications. This specific part number identifies a header assembly featuring a single row of contacts with a standard 0.100-inch (2.54mm) pitch. The unit is engineered to accommodate one position, providing a singular electrical pathway within the circuit architecture. It utilizes a through-hole mounting style, ensuring secure attachment to printed circuit boards via soldering processes. The contact configuration consists of male pins, which are intended to mate with corresponding female receptacles or sockets. The design incorporates a push-pull fastening mechanism to maintain connection integrity during operation.

Headers, Male Pins Feature Summary

• Features a precision-machined single-row header configuration optimized for reliable signal transmission in compact layouts.
• Incorporates a robust push-pull fastening system to ensure stable mechanical retention and consistent electrical contact under vibration.
• Constructed with high-conductivity materials and durable plating to support long-term performance in industrial environments.

Headers, Male Pins Applications

• Industrial control systems requiring secure board-to-board connections
• Telecommunications equipment utilizing standardized pin spacing
• Automotive electronics interfaces demanding high reliability

Headers, Male Pins Procurement Notes

Verify that the required contact count matches the single-position specification of this specific part number. Confirm that the mating interface requires a male pin header rather than a socket variant. Ensure the application environment supports the standard operating temperature range associated with this series. Check for any specific RoHS compliance requirements if the project mandates lead-free standards, as older series may have different material compositions.

Headers, Male Pins Selection Notes

Select this component when a single-channel interconnection is required with a 2.54mm pitch. Ensure the PCB layout accommodates the through-hole footprint dimensions specified for the 800 series. Verify that the mating connector provides a compatible female interface for the male pin configuration. Consider the mechanical retention needs of the push-pull system versus other locking mechanisms available in the product line.

Headers, Male Pins Part Context

This component belongs to the Mill-Max 800 series of rectangular connectors, which are widely recognized for their precision engineering and reliability in critical interconnect applications. The series offers various configurations to meet diverse industry standards. Mill-Max Manufacturing Corp. specializes in high-reliability interconnect solutions, serving sectors such as defense, aerospace, and telecommunications with components designed for rigorous operational demands.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers: 929800-01-17 (Note: Different pin count), BBL-117-G-E Samtec Inc., BBL-117-G-F Samtec Inc.
