800-10-003-20-001000

Headers, Male Pins Overview

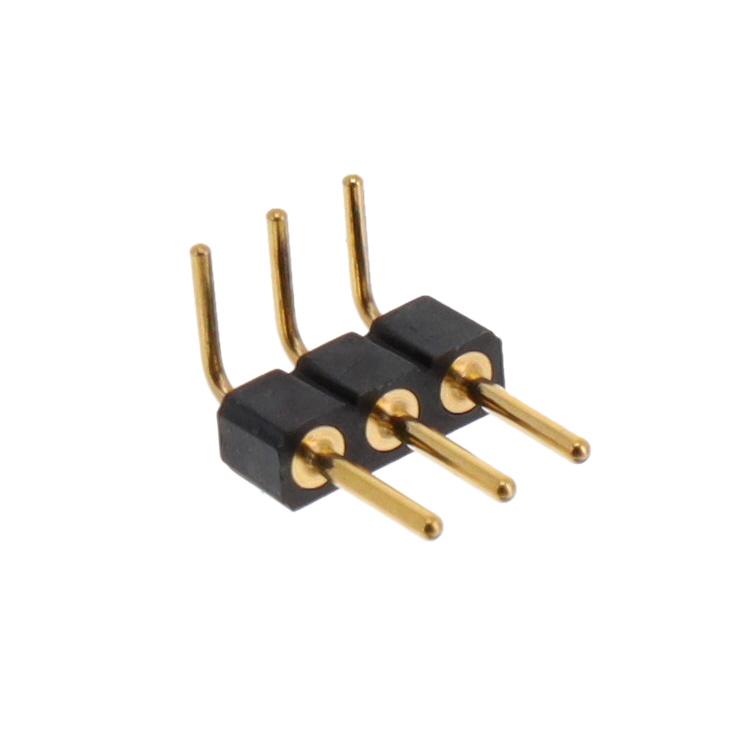

The Mill-Max 800-10-003-20-001000 is a precision header connector featuring three positions with a 0.100-inch (2.54mm) pitch. Designed for right-angle through-hole mounting, it utilizes gold-plated contacts to ensure reliable signal transmission in compact electronic assemblies. The component supports solder termination and includes a push-pull locking mechanism for secure mating. It operates within a temperature range of -55°C to 125°C, providing robust performance for board-to-board interconnection applications requiring high reliability.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates dense circuit board layouts
• Gold-plated contacts provide corrosion resistance and stable conductivity
• Push-pull locking system ensures secure mechanical retention

Headers, Male Pins Applications

• Board-to-board interconnections
• Compact electronic device assembly
• High-reliability signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Mill-Max documentation to confirm exact plating thickness and contact material specifications. Ensure compatibility with mating receptacles regarding pitch and locking style. Confirm that the right-angle form factor aligns with the mechanical constraints of the target enclosure design before finalizing procurement.

Headers, Male Pins Selection Notes

Select this model when space efficiency is critical due to its right-angle configuration. Verify that the three-position count meets the circuit requirements. Ensure the operating environment remains within the specified temperature limits. Confirm that the through-hole termination method is compatible with the printed circuit board manufacturing process.

Headers, Male Pins Part Context

This component belongs to the Mill-Max 800 series, which specializes in standard pin headers. The series offers various position counts and configurations to support diverse interconnect needs. Mill-Max Manufacturing Corp. produces these components using precision machining techniques to maintain consistent electrical and mechanical performance across the product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 3-position, 2.54mm pitch right-angle headers from manufacturers such as Preci-Dip or Samtec. Ensure replacement parts match the physical dimensions, locking mechanism type, and contact plating specifications to maintain system integrity.
