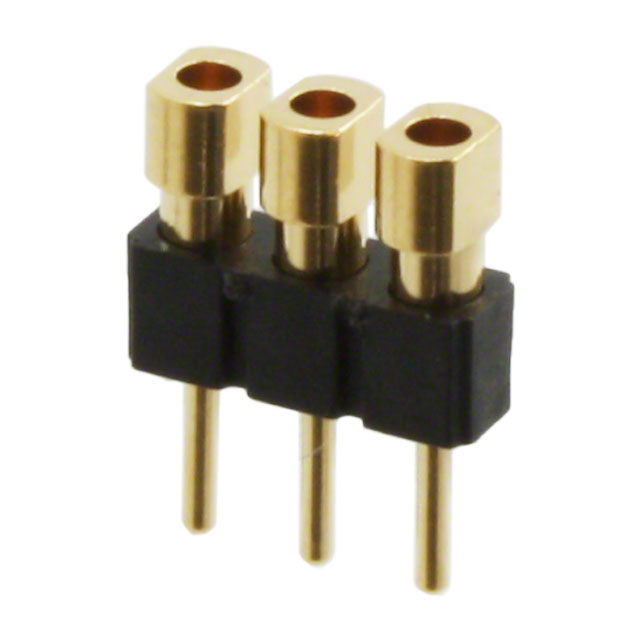

800-10-003-40-002000

800-10-003-40-002000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER SMD 3POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 800-10-003-40-002000

• Description：CONN HEADER SMD 3POS 2.54MM
• Series：800
• Mfr：Mill-Max Manufacturing Corp.
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：3
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.147" (3.73mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.110" (2.79mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Contact Finish - Post：-
• Contact Material：Brass
• Insulation Material：Polyamide (PA46), Nylon 4/6
• Features：-
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 800-10-003-40-002000
