800-10-004-20-004101

Headers, Male Pins Overview

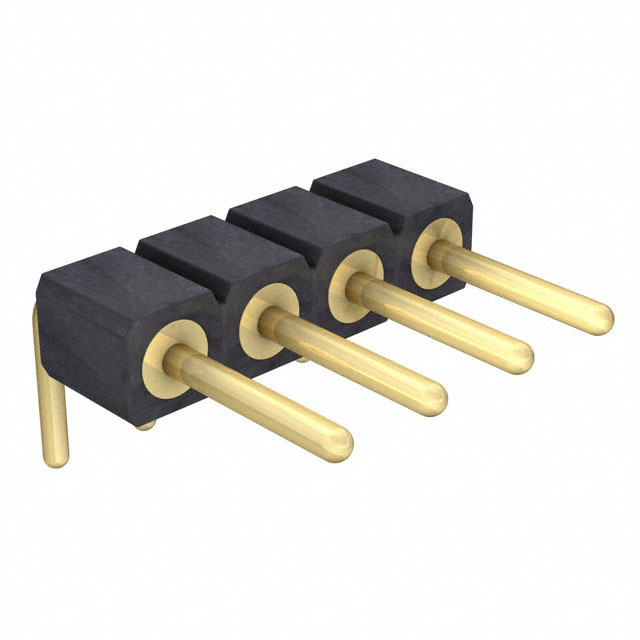

The Preci-Dip 800-10-004-20-004101 is a single-row male header connector from the 800 series, designed for surface mount installation. It features four positions with a 2.54 mm (0.100 inch) pitch and right-angle orientation. The contacts are made of brass with tin plating, rated for 3A current and 150V DC voltage. The housing utilizes glass-filled polyester insulation, black in color, supporting an operating temperature range of -55°C to +125°C and meeting UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Tin-plated brass contacts ensure reliable conductivity
• Glass-filled polyester insulation provides thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control board assemblies
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required contact length and termination style. Confirm that the surface mount footprint aligns with the target PCB layout. Check for RoHS compliance status if environmental regulations apply. Ensure the right-angle configuration suits the spatial constraints of the assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for single-row applications. The 2.54 mm pitch ensures compatibility with standard mating connectors. Consider the surface mount requirement versus through-hole alternatives if mechanical stress or board thickness varies.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 800 series, which offers various IC pin connectors including straight and right-angle options. The series supports configurations from two to twenty-four contacts, utilizing glass-filled polyester insulation and tin-plated brass terminals for consistent performance across diverse industrial and commercial environments.

Headers, Male Pins Replacement Considerations

Cross-reference with other 800-series variants such as 800-10-004-30-004101 for different contact lengths. Verify compatibility with mating sockets from the same series to ensure proper engagement and electrical continuity.
