800-10-005-30-001000

Headers, Male Pins Overview

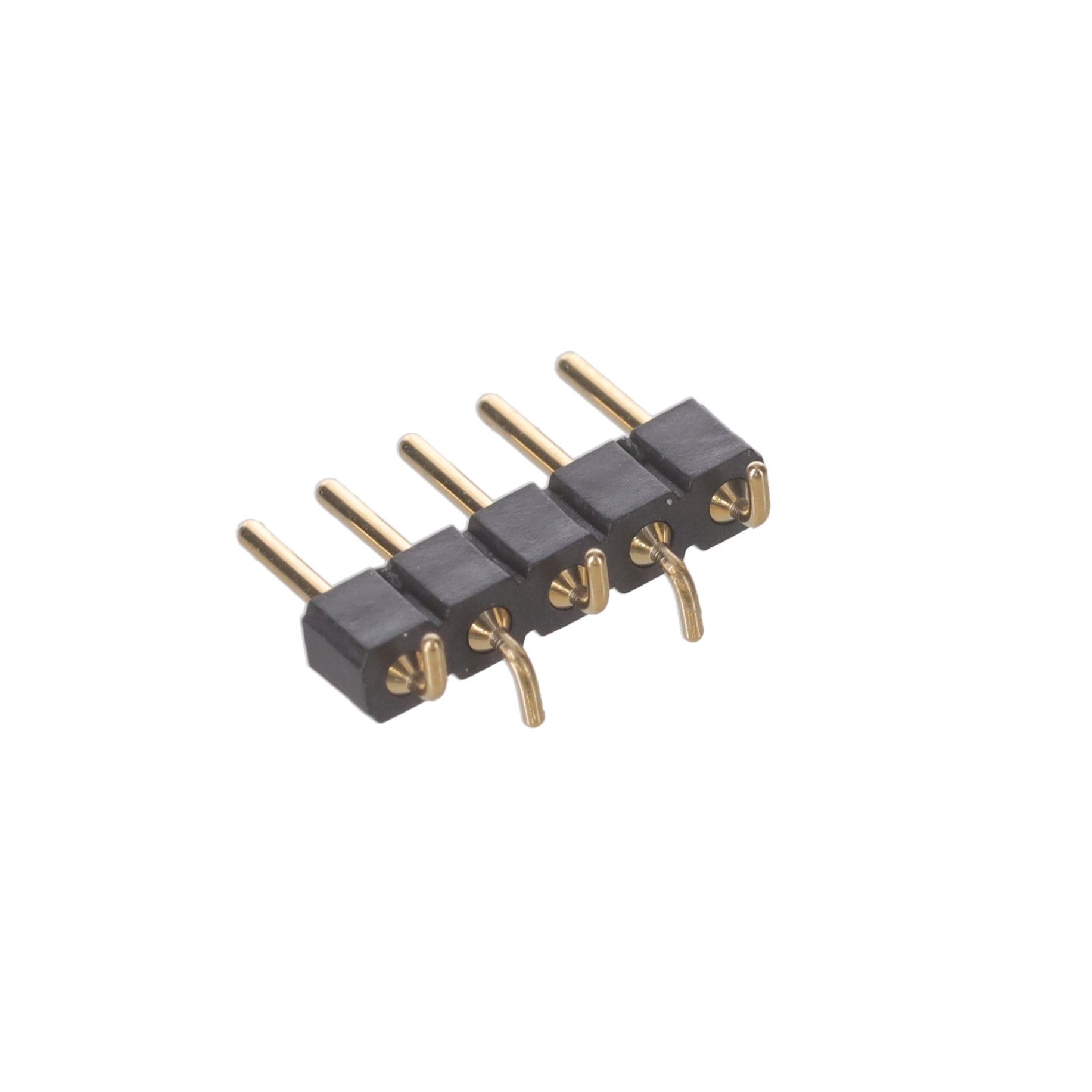

The Mill-Max 800-10-005-30-001000 is a surface mount header connector featuring five positions with a 2.54mm (0.100 inch) pitch. It utilizes gold-plated contacts over nickel for reliable signal transmission and corrosion resistance. The unit is designed for vertical mounting on printed circuit boards, offering a compact profile suitable for space-constrained applications. This component belongs to the standard socket header series, providing a secure mechanical connection for mating pins.

Headers, Male Pins Feature Summary

• Vertical surface mount design for direct PCB integration
• Gold-over-nickel contact plating for enhanced durability
• Standard 2.54mm pitch spacing for broad compatibility

Headers, Male Pins Applications

• Portable data acquisition systems
• Mobile communications devices
• Medical instrumentation interfaces
• Military electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Mill-Max documentation to confirm exact plating thickness and material composition. Ensure the surface mount variant matches the required thermal profile for reflow soldering processes. Cross-reference the pin count and pitch with schematic requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a low-profile, vertically oriented header is required for surface assembly. The 2.54mm pitch ensures compatibility with standard ribbon cables and mating connectors. Consider the gold plating option if high cycle life or corrosive environments are anticipated within the target application scope.

Headers, Male Pins Part Context

This component is part of Mill-Max's standard interconnect portfolio, established since 1971. The 800 series represents precision-machined headers designed for high reliability. Manufacturing occurs in US-based facilities to ensure consistent quality control and service availability for industrial and commercial electronics sectors globally.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 5-position count, 2.54mm pitch, and surface mount configuration. Verify that alternative suppliers offer identical gold-over-nickel plating specifications. Ensure the replacement maintains the same vertical orientation and footprint dimensions to fit existing board layouts without modification.
