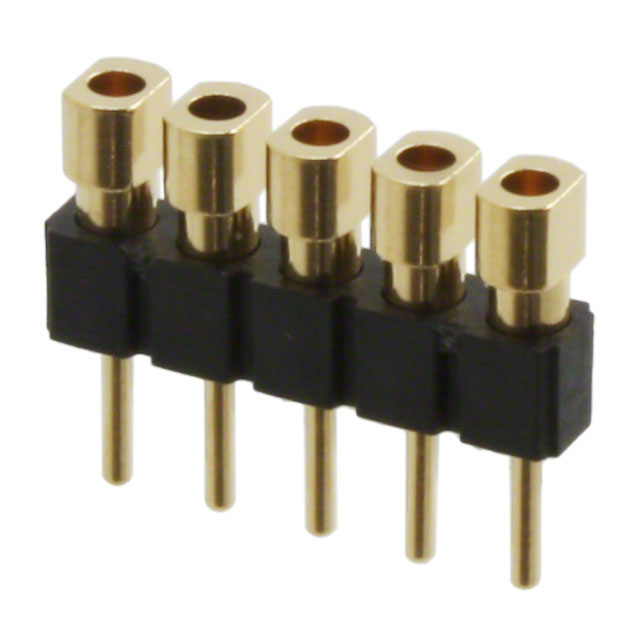

800-10-005-40-002000

$6.22

Description：CONN HEADER SMD 5POS 2.54MM
Series：800
Mfr：Mill-Max Manufacturing Corp.
Package：Tube

SKU:e4d769833cc1 Category: Headers, Male Pins Brand: Mill-Max Manufacturing Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

800-10-005-40-002000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER SMD 5POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 800-10-005-40-002000

Description：CONN HEADER SMD 5POS 2.54MM
Series：800
Mfr：Mill-Max Manufacturing Corp.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.147" (3.73mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.110" (2.79mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA46), Nylon 4/6
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 800-10-005-40-002000

800-10-005-40-002000

Headers, Male Pins Overview

The Mill-Max 800-10-005-40-002000 is a surface mount header connector featuring five positions with a 0.100-inch (2.54mm) pitch. Designed for horizontal board mounting, it utilizes a male contact configuration suitable for board-to-board applications. The component incorporates matte tin plating over nickel on both mating and termination surfaces to ensure reliable electrical conductivity and corrosion resistance in electronic assemblies.

Headers, Male Pins Feature Summary

Horizontal surface mount design for compact PCB integration
Male pin configuration for secure board-to-board connectivity
Matte tin over nickel plating for enhanced durability

Headers, Male Pins Applications

Board-to-board interconnection systems
Compact electronic module assembly
Surface mount circuit board integration

Headers, Male Pins Procurement Notes

Verify the specific orientation requirements for horizontal surface mount installation against your PCB layout constraints. Confirm that the matte tin over nickel plating specifications align with your environmental compliance standards. Ensure the five-position count matches your signal routing needs before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile horizontal header is required for surface mount technology. The 2.54mm pitch ensures compatibility with standard through-hole and surface mount mating connectors. Consider the mechanical stability provided by the surface mount footprint for robust connections in dense electronic layouts.

Headers, Male Pins Part Context

This part belongs to the Mill-Max 800 series of rectangular connectors, which are engineered for high-density interconnect solutions. The series offers various configurations including vertical and horizontal orientations with different pin counts. This specific model represents a specialized horizontal variant optimized for space-constrained surface mount applications.
