800-10-006-20-001000

Headers, Male Pins Overview

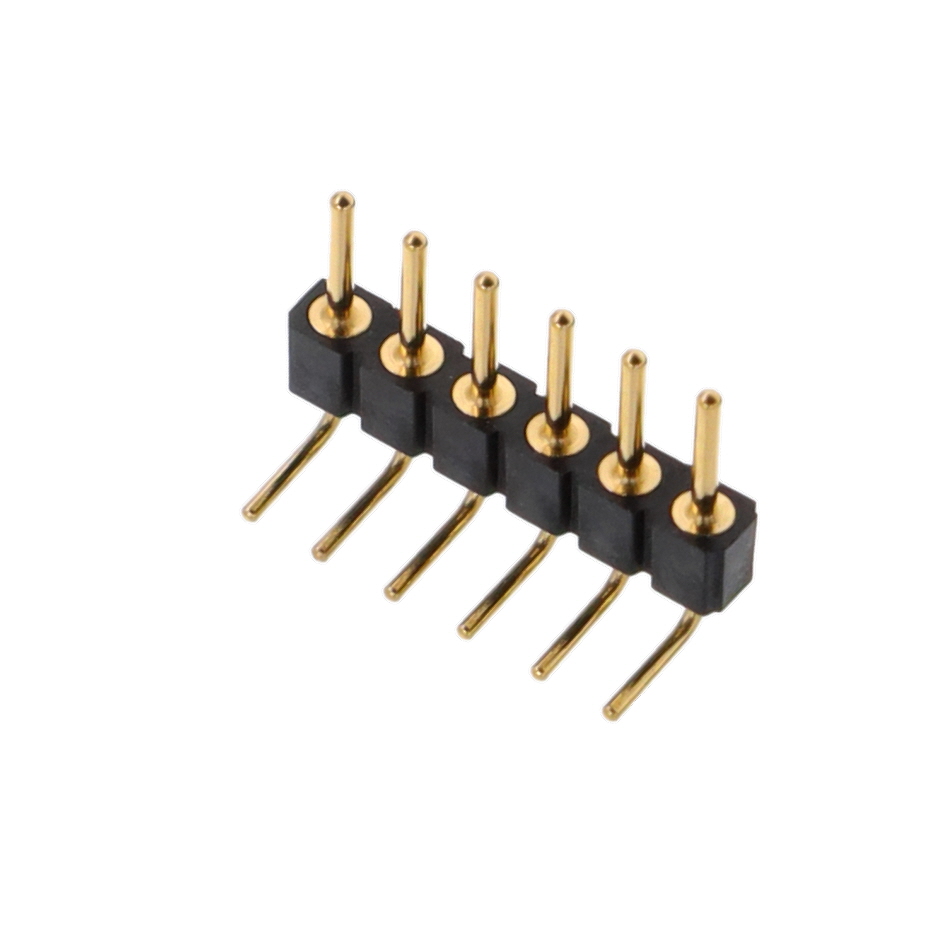

The Mill-Max 800-10-006-20-001000 is a standard pin header connector designed for through-hole mounting. It features six positions arranged in a single row with a 0.100-inch (2.54mm) mating pitch. The component utilizes male pins with gold-plated contacts to ensure reliable signal transmission. This header is part of the 800 series, offering a robust solution for board-to-board or cable-to-board interconnections requiring precise alignment and durable electrical contact.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Gold-plated male pin contacts for enhanced conductivity
• Single-row layout with standardized 2.54mm spacing

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Prototype development and testing setups
• Industrial control panel wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific manufacturer designation, as this part number may be associated with Preci-Dip under certain distribution channels. Confirm that the required contact plating thickness and current ratings align with your application's electrical specifications before finalizing the order. Ensure compatibility with standard DIP socket counterparts if used in plug-and-receptacle configurations.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header is required for direct PCB insertion. The 2.54mm pitch ensures compatibility with standard breadboard and prototyping systems. Consider the mechanical stability provided by the through-hole termination method compared to surface-mount alternatives for applications subject to vibration or physical stress.

Headers, Male Pins Part Context

This connector belongs to the Mill-Max 800 series, which encompasses a wide range of standard pin headers and wire housings. The series is characterized by its versatility in providing reliable interconnect solutions for various electronic assemblies. The 800-10 variant specifically denotes a vertical orientation with standard pin dimensions, distinguishing it from right-angle or specialized high-current variants within the same family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 6-position, 2.54mm pitch through-hole headers from manufacturers such as Preci-Dip or Samtec. Ensure that any replacement matches the original pin length, plating material, and insulation rating to maintain mechanical fit and electrical performance.
