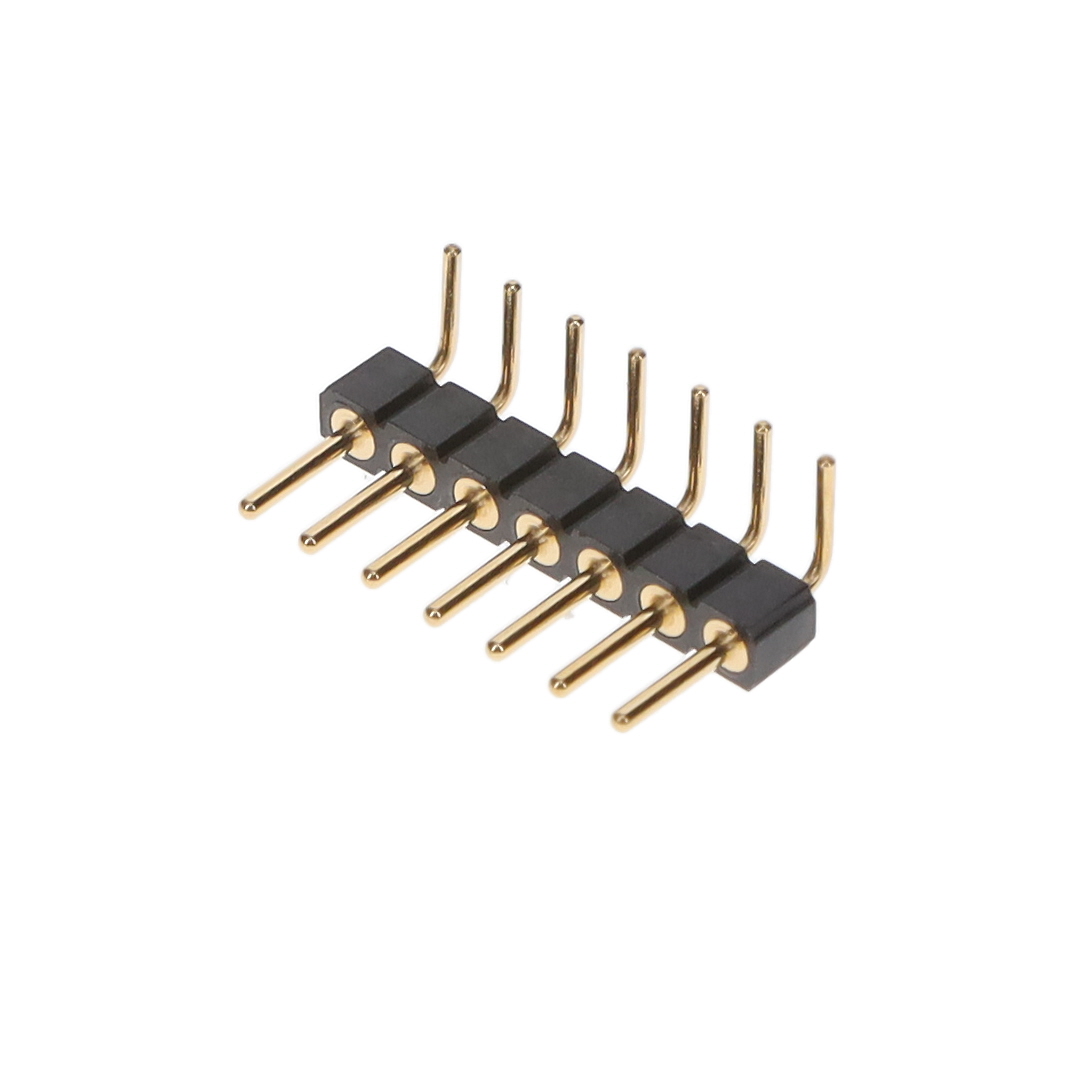

800-10-007-20-001000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER R/A 7POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 800-10-007-20-001000
- Description：CONN HEADER R/A 7POS 2.54MM
- Series：800
- Mfr：Mill-Max Manufacturing Corp.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：7
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.195" (4.95mm)
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：10.0µin (0.25µm)
- Contact Finish - Post：Gold
- Contact Material：Brass Alloy
- Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT)
- Features：-
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for 800-10-007-20-001000
Headers, Male Pins Overview
The Mill-Max Manufacturing Corp. model 800-10-007-20-001000 is a standard pin header connector designed for through-hole mounting. It features seven positions arranged in a single row with a 0.100-inch (2.54mm) pitch. The component utilizes gold-plated contacts and a black insulator made of glass-filled PCT polyester, rated for UL94 V-0 flammability. It supports a maximum current of 3A at 150VDC and operates within a temperature range of -55°C to 125°C.
Headers, Male Pins Feature Summary
- Through-hole mounting configuration with right-angle orientation
- Gold-plated contact surfaces for reliable signal transmission
- Glass-filled PCT polyester insulation material
Headers, Male Pins Applications
- Board-to-board interconnections
- General electronic circuit assembly
- Industrial control systems
Headers, Male Pins Procurement Notes
Verify the specific manufacturer designation when sourcing this part number, as it may be listed under Preci-Dip or Mill-Max depending on the distribution channel. Confirm that the right-angle orientation matches the design requirements, as variations exist within the 800 series. Ensure compatibility with standard PCB hole sizes for the specified 2.54mm pitch.
Headers, Male Pins Selection Notes
Select this component for applications requiring a low-profile, right-angle connection between boards. The 3A current rating and 150VDC voltage limit define its electrical boundaries. Consider the single-row layout for space-constrained designs where vertical clearance is limited but horizontal board space is available.
Headers, Male Pins Part Context
This part belongs to the 800 series of precision-machined interconnect components manufactured by Mill-Max. The series is characterized by high-reliability headers suitable for demanding environments. The specific suffix indicates the position count, pitch, and plating specifications unique to this variant.
Headers, Male Pins Replacement Considerations
- 800-10-007-66-001101
- 800-10-007-65-001101
Headers, Male Pins FAQ
What is the flammability rating of the insulator?
The insulator material has a UL94 V-0 flammability rating.
Does this connector support wire termination?
Yes, the 800 series typically supports both crimping and soldering termination methods.
