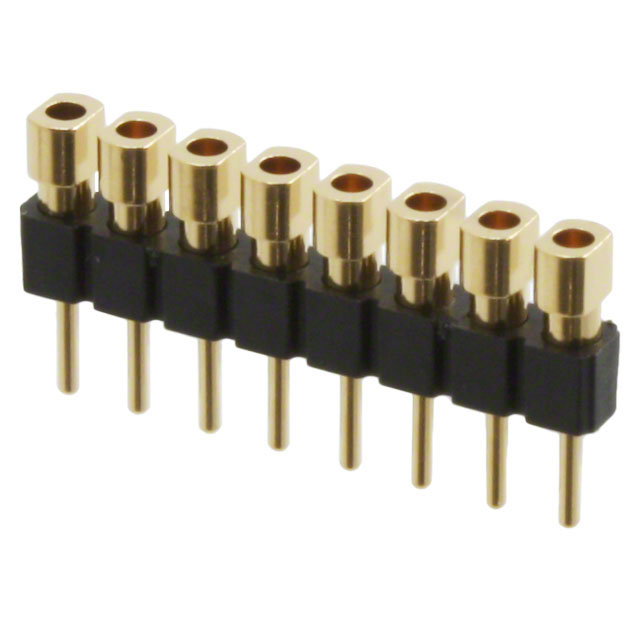

800-10-008-40-002000

$9.37

Description：CONN HEADER SMD 8POS 2.54MM
Series：800
Mfr：Mill-Max Manufacturing Corp.
Package：Tube

SKU:75e09e45a73a Category: Headers, Male Pins Brand: Mill-Max Manufacturing Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

800-10-008-40-002000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER SMD 8POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 800-10-008-40-002000

Description：CONN HEADER SMD 8POS 2.54MM
Series：800
Mfr：Mill-Max Manufacturing Corp.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：8
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.147" (3.73mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.110" (2.79mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA46), Nylon 4/6
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 800-10-008-40-002000

800-10-008-40-002000

Headers, Male Pins Overview

The Mill-Max 800-10-008-40-002000 is a standard pin header connector designed for surface mount vertical PCB installation. It features an 8-position configuration with a 0.100-inch (2.54mm) pitch. The contacts are constructed from brass alloy and finished with matte tin over nickel plating to ensure reliable electrical performance. This component belongs to the 800 series of rectangular connectors, providing a low-profile solution for board-to-board or cable-to-board interconnections in electronic assemblies.

Headers, Male Pins Feature Summary

Surface mount vertical mounting style for automated PCB assembly
Standard pin header design with brass alloy contacts
Matte tin over nickel contact finish for corrosion resistance

Headers, Male Pins Applications

Board-to-board interconnection systems
General purpose electronic circuit integration
Low-profile connector requirements in compact assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Mill-Max documentation to confirm exact plating thickness and material specifications. Ensure compatibility with surface mount reflow processes. Confirm that the 8-position count matches the design requirement. Cross-reference the datasheet for mechanical dimensions to validate PCB footprint clearance. Check for any RoHS compliance declarations if required by project standards.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header is required for 2.54mm pitch applications. The brass alloy construction offers cost-effective conductivity suitable for general signal transmission. Verify that the vertical orientation fits within the enclosure height constraints. Consider the matte tin finish for environments where solderability is prioritized over long-term high-corrosion exposure without additional protection.

Headers, Male Pins Part Context

This part belongs to the Mill-Max 800 series, which focuses on standard pin headers for various mounting styles. The manufacturer specializes in precision-machined interconnects for industrial and commercial electronics. The 800 series provides a range of positions and pitches, offering flexibility for different density requirements while maintaining consistent mechanical reliability across the product line.
