800-10-009-40-002000

$7.43

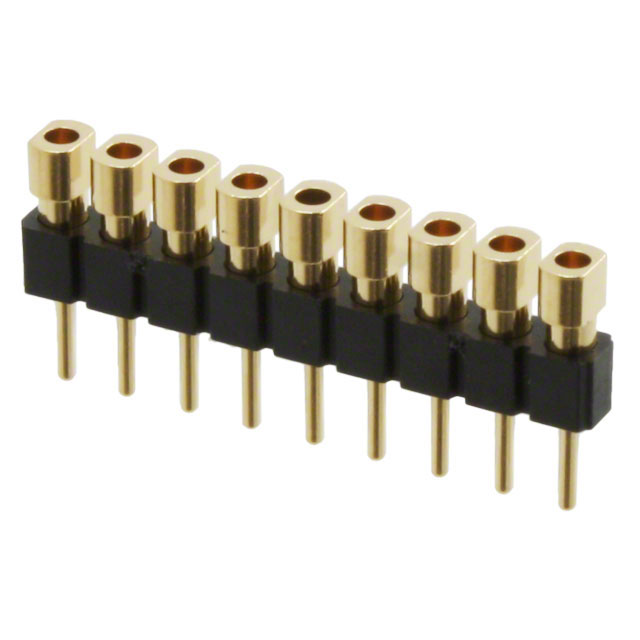

Description：CONN HEADER SMD 9POS 2.54MM
Series：800
Mfr：Mill-Max Manufacturing Corp.
Package：Bulk

SKU:aa0c226a1015 Category: Headers, Male Pins Brand: Mill-Max Manufacturing Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

800-10-009-40-002000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER SMD 9POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 800-10-009-40-002000

Description：CONN HEADER SMD 9POS 2.54MM
Series：800
Mfr：Mill-Max Manufacturing Corp.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：9
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.147" (3.73mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.110" (2.79mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA46), Nylon 4/6
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 800-10-009-40-002000

800-10-009-40-002000

Headers, Male Pins Overview

The Mill-Max 800-10-009-40-002000 is a standard pin header connector designed for surface mount applications. It features a single row of nine male contacts with a 0.100-inch (2.54mm) pitch. The component utilizes gold over nickel plating on the contact surfaces to ensure reliable electrical performance and corrosion resistance in board-to-board interconnect scenarios.

Headers, Male Pins Feature Summary

Surface mount termination method for automated PCB assembly
Gold over nickel contact plating for enhanced conductivity
Single-row configuration with standardized 2.54mm spacing

Headers, Male Pins Applications

Board-to-board interconnections
General electronic circuit mounting
Precision instrument interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with surface mount assembly processes and check for any updated environmental compliance certifications prior to final procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header with high-conductivity gold contacts is required. Confirm that the nine-position count and 2.54mm pitch align with the target PCB footprint and mating connector requirements for the specific design.

Headers, Male Pins Part Context

This part belongs to the Mill-Max 800 series of standard pin headers. The series is characterized by precision-machined contacts and offers various mounting options including through-hole and surface mount configurations. It is widely used in industrial and commercial electronics requiring reliable interconnects.
