800-10-010-20-001000

Headers, Male Pins Overview

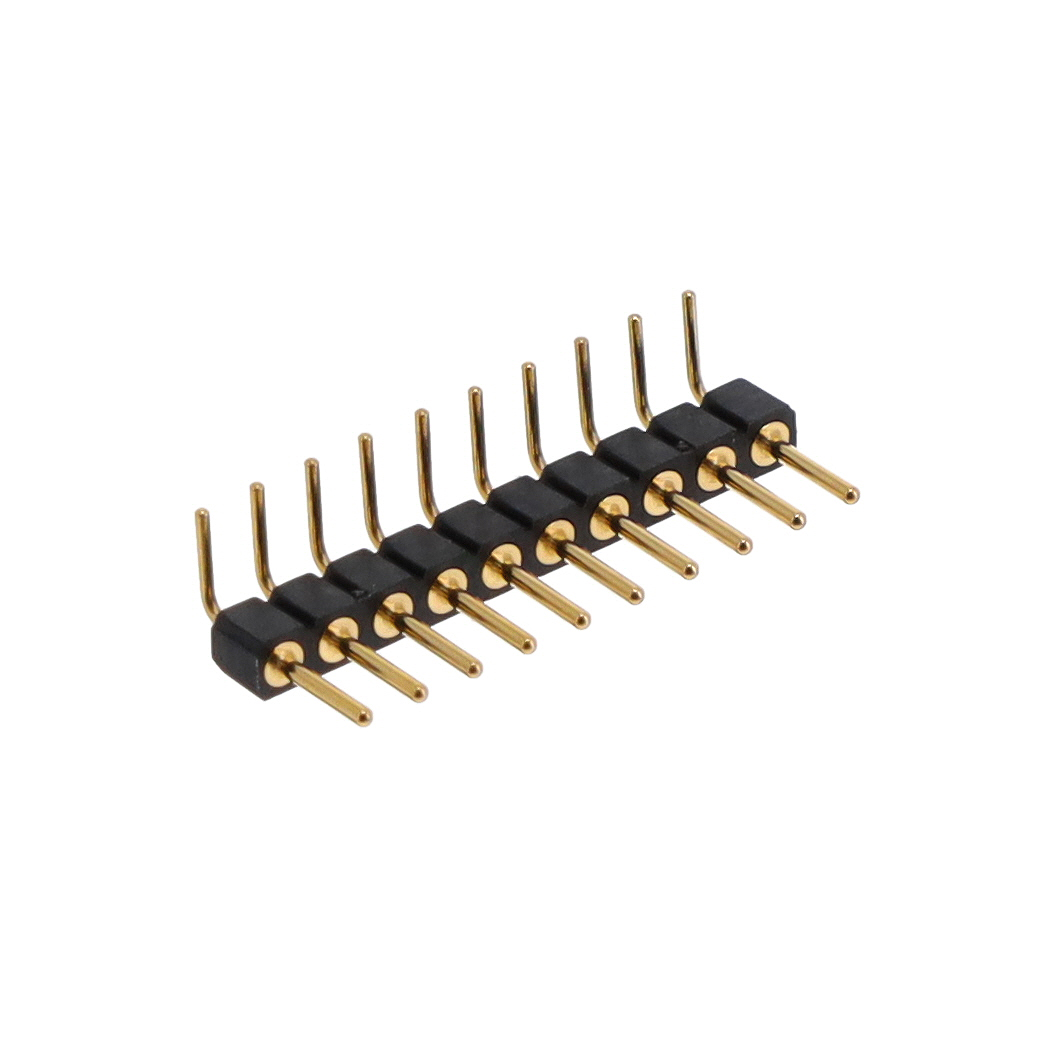

The Mill-Max Manufacturing Corp. model 800-10-010-20-001000 is a right-angle pin header connector designed for through-hole mounting on printed circuit boards. It features a single row configuration with ten positions and a standard 0.100-inch (2.54mm) contact spacing. The connector utilizes male pins with gold plating to ensure reliable signal transmission. Rated for 3A current and 150VDC voltage, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black glass-reinforced PCT polyester, meeting UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-board connections
• Gold-plated contacts provide corrosion resistance and stable conductivity
• Through-hole termination ensures secure mechanical attachment

Headers, Male Pins Applications

• Board-to-board interconnects in electronic assemblies
• General-purpose signal routing on PCBs
• Industrial control system interfaces

Headers, Male Pins Procurement Notes

Verify the manufacturer part number against official datasheets to confirm specifications. Ensure compatibility with mating connectors regarding pitch and contact type. Check for RoHS compliance requirements specific to your project regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle orientation is required for space-constrained layouts. The 2.54mm pitch is suitable for standard DIP packages or similar mating interfaces. Consider the 3A current rating and 150VDC voltage limit to ensure safe operation within the target circuit environment.

Headers, Male Pins Part Context

This connector belongs to the 800 series, which includes various pin header configurations. It is manufactured by Preci-Dip under license or as an equivalent specification. The product is currently active and available for production use, supporting standard industrial interconnect needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include models with identical 2.54mm pitch, right-angle orientation, and 10-position count. Verify that replacement parts match the 3A current rating and 150VDC voltage limits. Ensure the mating interface geometry aligns with existing design constraints.
