800-10-010-30-001000

Headers, Male Pins Overview

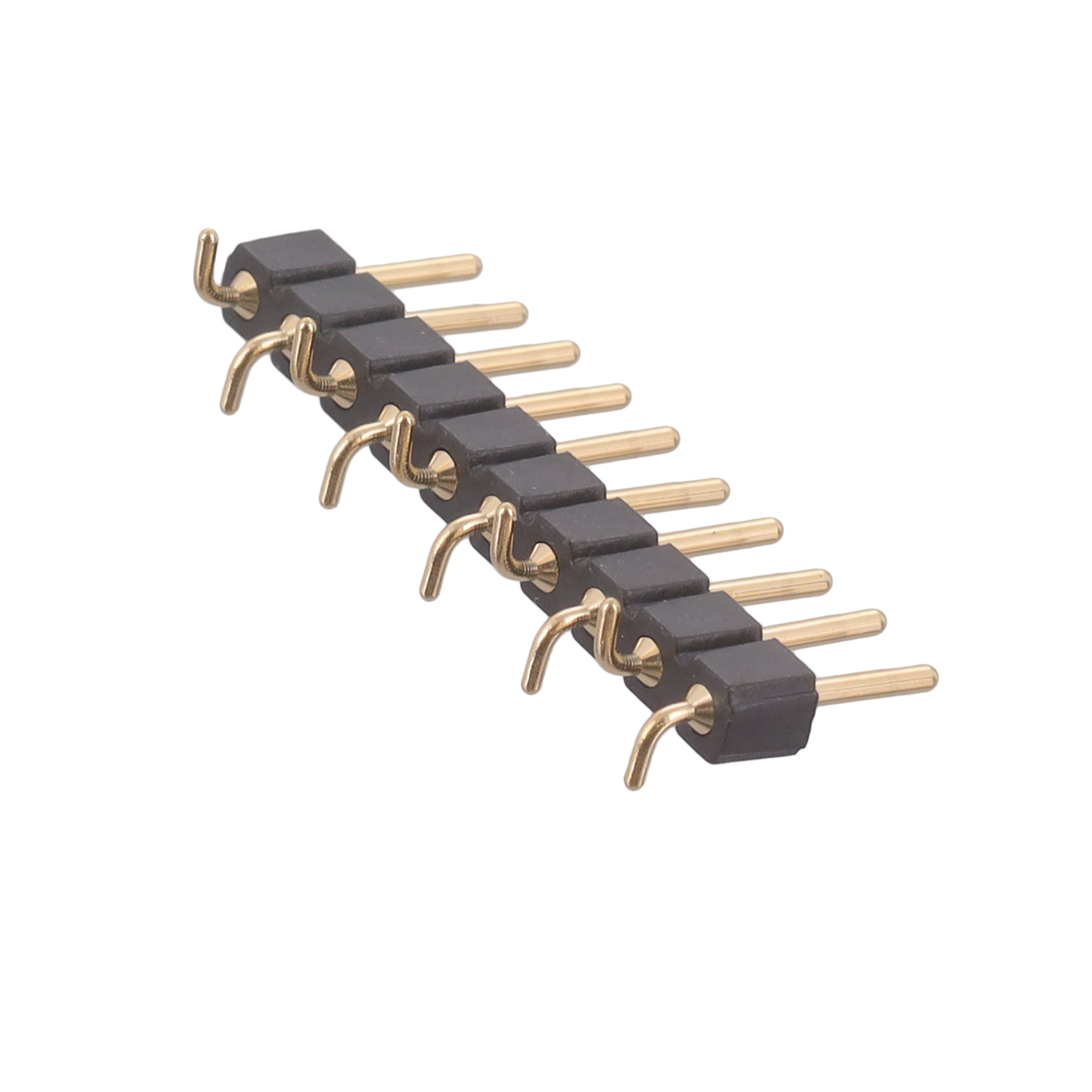

The Mill-Max 800-10-010-30-001000 is a surface mount header connector designed for board-to-board applications. It features a 0.100" (2.54mm) pitch and contains 10 positions with male pins. The component utilizes a solder pin termination style and is manufactured by Mill-Max Manufacturing Corp.

Headers, Male Pins Feature Summary

• Surface mount design for direct PCB integration
• Male pin configuration for board-to-board connectivity
• Standard 0.100 inch (2.54mm) contact spacing

Headers, Male Pins Applications

• Board-to-board interconnects
• Surface mount circuit assemblies
• Electronic device internal connections

Headers, Male Pins Procurement Notes

Verify the specific manufacturer designation, as this part number appears in databases associated with both Mill-Max and Preci-Dip. Confirm the exact termination style and packaging details against the official datasheet to ensure compatibility with automated surface mount processes. Cross-reference the DigiKey identifier for accurate sourcing.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount solution is required for connecting two printed circuit boards. Ensure the mating connector matches the 0.100-inch pitch and male pin configuration. Verify that the solder pin termination style aligns with the assembly equipment capabilities and thermal profile requirements.

Headers, Male Pins Part Context

This connector belongs to the standard header series produced by Mill-Max Manufacturing Corp., a recognized leader in high-reliability precision-machined interconnect components. The product line emphasizes US-based manufacturing for consistent quality and service. This specific model represents a standard pitch solution for general electronic interconnection needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 10-position, 2.54mm pitch surface mount headers from manufacturers such as Preci-Dip or Samtec. Ensure the replacement maintains the same male pin configuration and solder termination style to preserve mechanical and electrical interface integrity.
