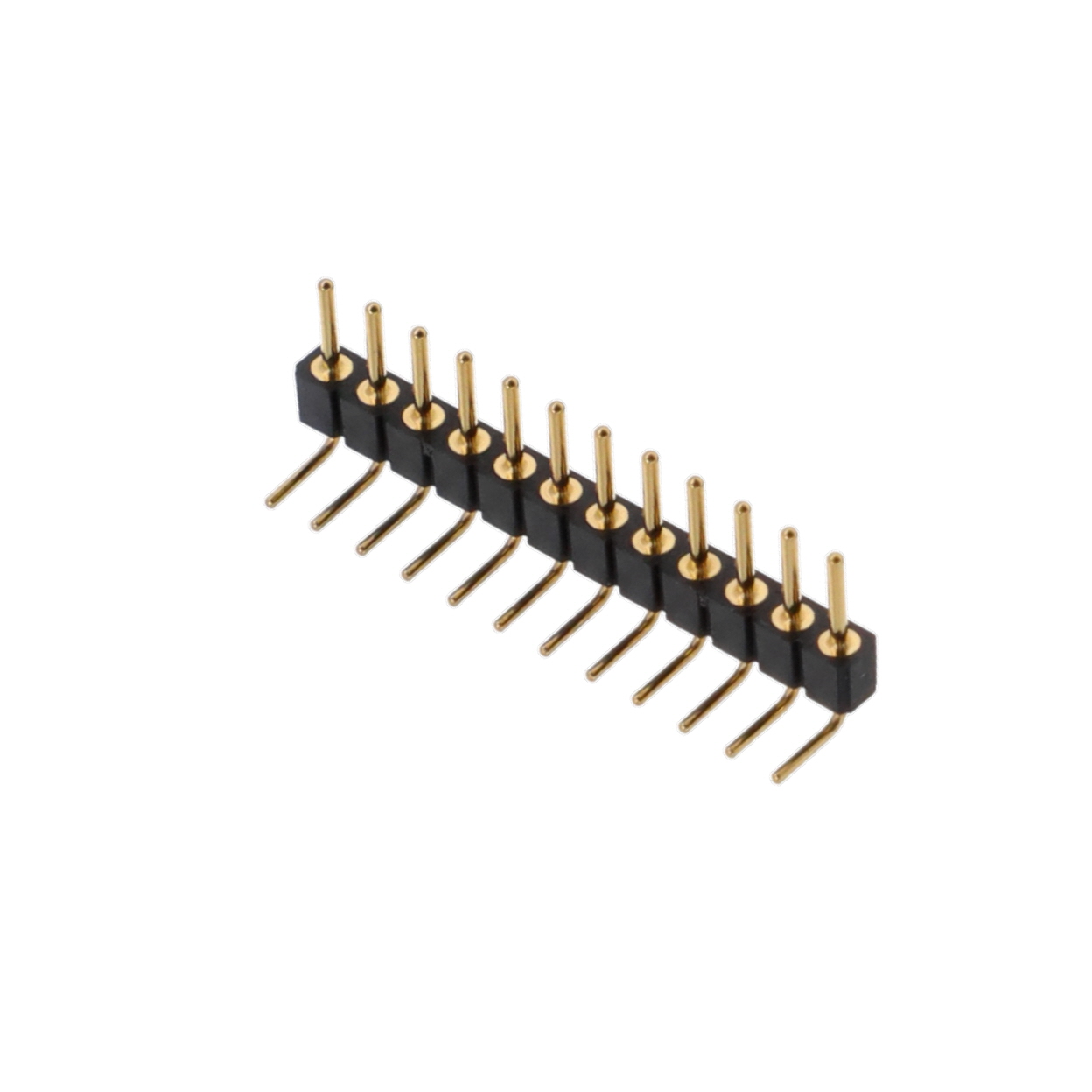

800-10-012-20-001000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER R/A 12POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 800-10-012-20-001000
- Description：CONN HEADER R/A 12POS 2.54MM
- Series：800
- Mfr：Mill-Max Manufacturing Corp.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：12
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.195" (4.95mm)
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：10.0µin (0.25µm)
- Contact Finish - Post：Gold
- Contact Material：Brass Alloy
- Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT)
- Features：-
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for 800-10-012-20-001000
Headers, Male Pins Overview
The Mill-Max 800-10-012-20-001000 is a right-angle pin header connector featuring 12 positions with a 0.100 inch (2.54mm) pitch. Designed for through-hole mounting, this component utilizes a push-pull fastening mechanism and accepts wire wrap termination. The contacts are constructed from beryllium copper with gold plating to ensure reliable signal transmission in board-to-board applications.
Headers, Male Pins Feature Summary
- Right-angle configuration for space-efficient PCB layout
- Gold-plated beryllium copper contacts for durability
- Push-pull locking mechanism for secure connection
Headers, Male Pins Applications
- Board-to-board interconnects
- Industrial control systems
- Telecommunications equipment
Headers, Male Pins Procurement Notes
Verify the specific manufacturer designation when sourcing, as this part number may be associated with Preci-Dip or Mill-Max depending on the supply chain channel. Confirm that the right-angle orientation and 12-position count match the design requirements before procurement. Ensure compatibility with standard DIP socket mating interfaces.
Headers, Male Pins Selection Notes
Select this component for applications requiring a low-profile right-angle connection with a 2.54mm grid. The gold contact finish supports high-cycle reliability. Verify that the through-hole footprint aligns with the PCB fabrication capabilities and that the current rating meets the circuit demands.
Headers, Male Pins Part Context
This connector belongs to the 800 series of precision interconnect components. It serves as a male header counterpart to female sockets within the same family. The design emphasizes mechanical stability and electrical performance for dense electronic assemblies requiring robust physical connections.
Headers, Male Pins Replacement Considerations
Compatible substitutes include other 12-position, 2.54mm pitch right-angle headers with gold contacts. Verify mechanical dimensions and terminal style compatibility before substitution.
